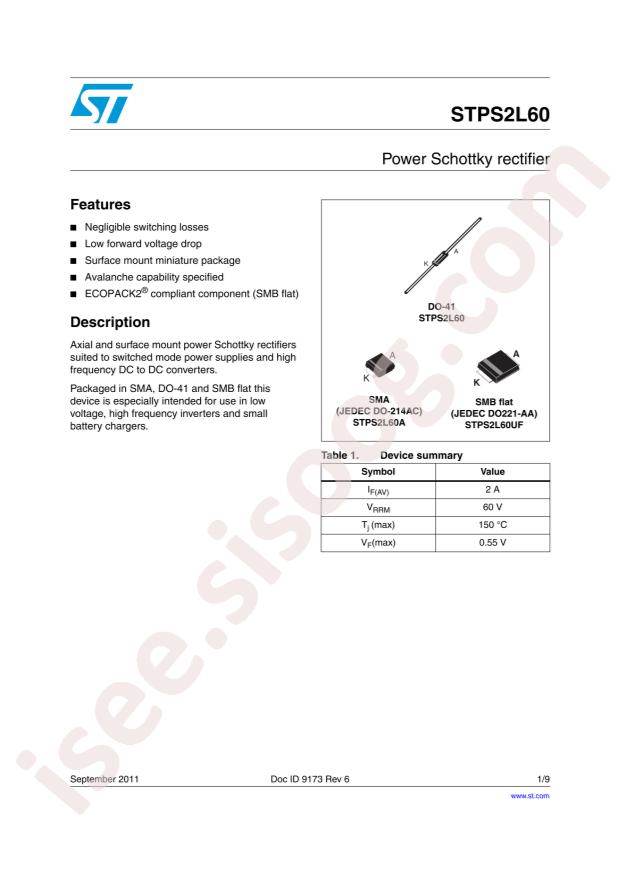

دیتاشیت STPS2L60A

STPS2L60

مشخصات دیتاشیت

نام دیتاشیت STPS2L60
حجم فایل 373.615 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت STPS2L60

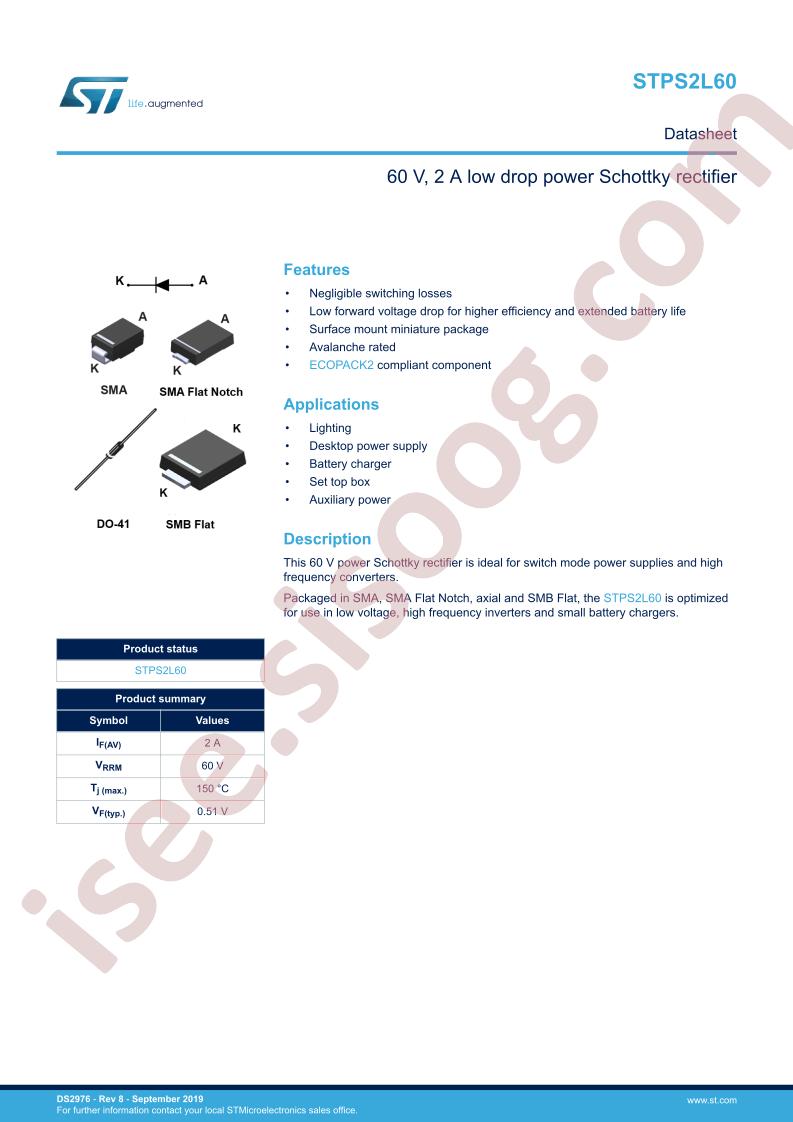

STPS2L60 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS2L60A
  • Reverse Voltage (Vr): 60V
  • Forward Voltage (Vf@If): 600mV@2A
  • Reverse Leakage Current (Ir): 100uA@60V
  • Average Rectified Current (Io): 2A
  • Package: SMA(DO-214AC)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 60V
  • Current - Average Rectified (Io): 2A
  • Voltage - Forward (Vf) (Max) @ If: 600mV @ 2A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 100µA @ 60V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: DO-204AL, DO-41, Axial
  • Supplier Device Package: DO-41
  • Operating Temperature - Junction: 150°C (Max)
  • Base Part Number: STPS2L60
  • detail: Diode Schottky 60V 2A Through Hole DO-41
