دیتاشیت SLVU2.8-8A1

SLVU2.8

مشخصات دیتاشیت

نام دیتاشیت SLVU2.8
حجم فایل 201.819 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت SLVU2.8

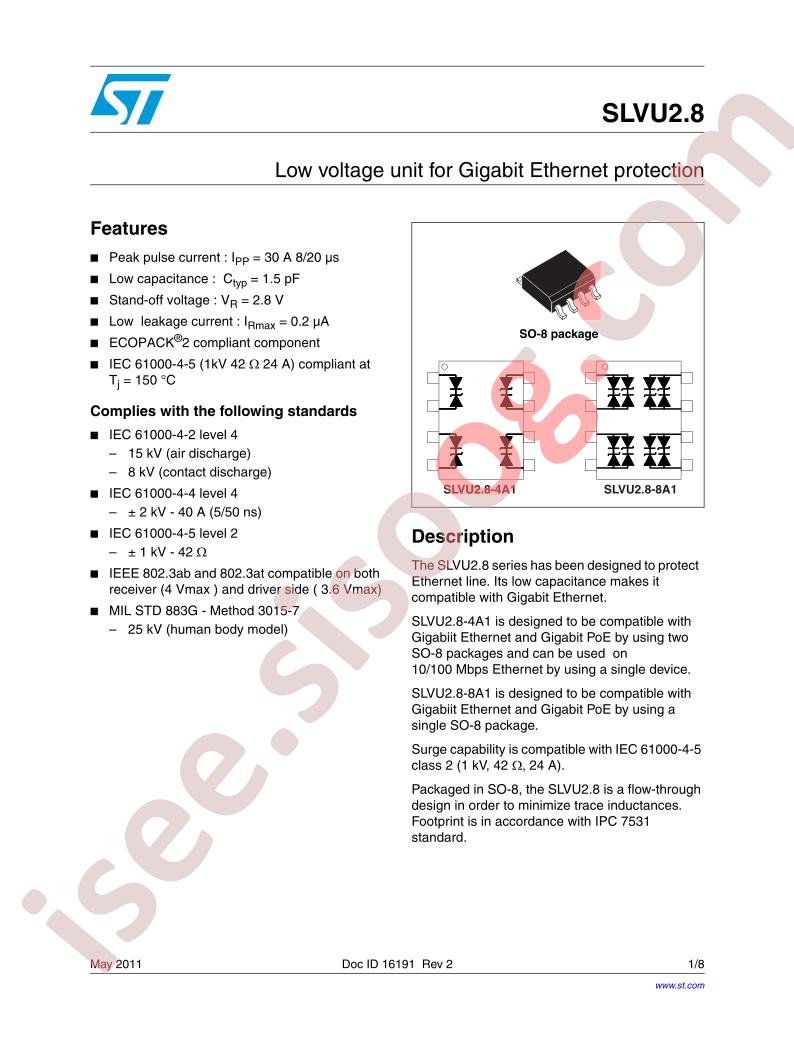

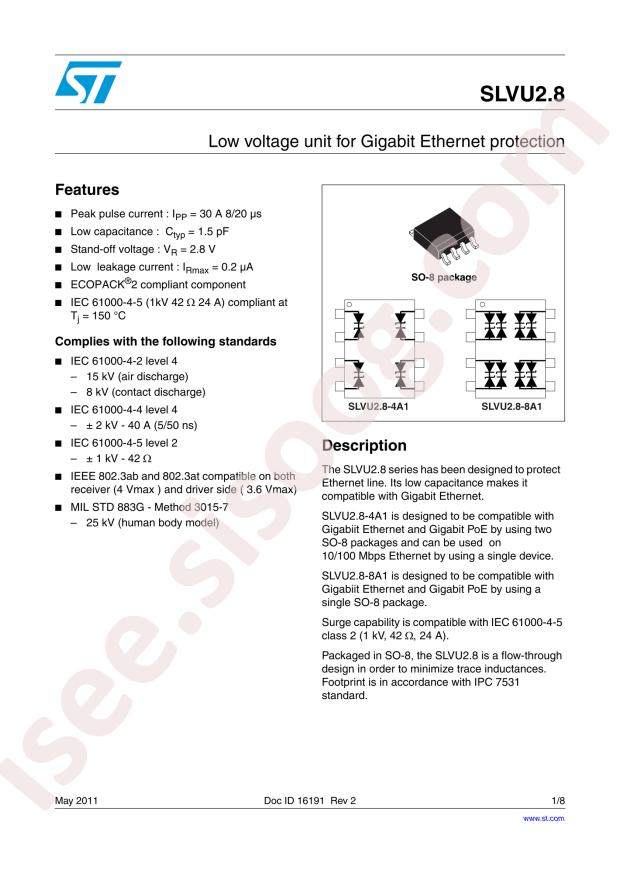

SLVU2.8 Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics SLVU2.8-8A1
  • Number of Lines: 8
  • Clamping Voltage@Ipp: 15V
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): -
  • Peak Pulse Power(Ppp)@8/20us: 600W
  • Junction Capacitance(Cj)@1MHz: -
  • Peak Pulse Current(Ipp)@8/20us: 24A@(8/20us)
  • Reverse Stand-Off Voltage (Vrwm): 2.8V
  • Package: SOP-8
  • Manufacturer: STMicroelectronics
  • Series: SLVU
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Bidirectional Channels: 8
  • Voltage - Reverse Standoff (Typ): 2.8V
  • Voltage - Breakdown (Min): -
  • Voltage - Clamping (Max) @ Ipp: 15V
  • Current - Peak Pulse (10/1000µs): 24A (8/20µs)
  • Power - Peak Pulse: 600W
  • Power Line Protection: No
  • Applications: Ethernet
  • Capacitance @ Frequency: -
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: SLVU2
  • detail: 15V Clamp 24A (8/20µs) Ipp Tvs Diode Surface Mount 8-SOIC
