دیتاشیت DRV8835DSSR

DRV8835

مشخصات دیتاشیت

نام دیتاشیت DRV8835
حجم فایل 1353.383 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

دانلود دیتاشیت DRV8835

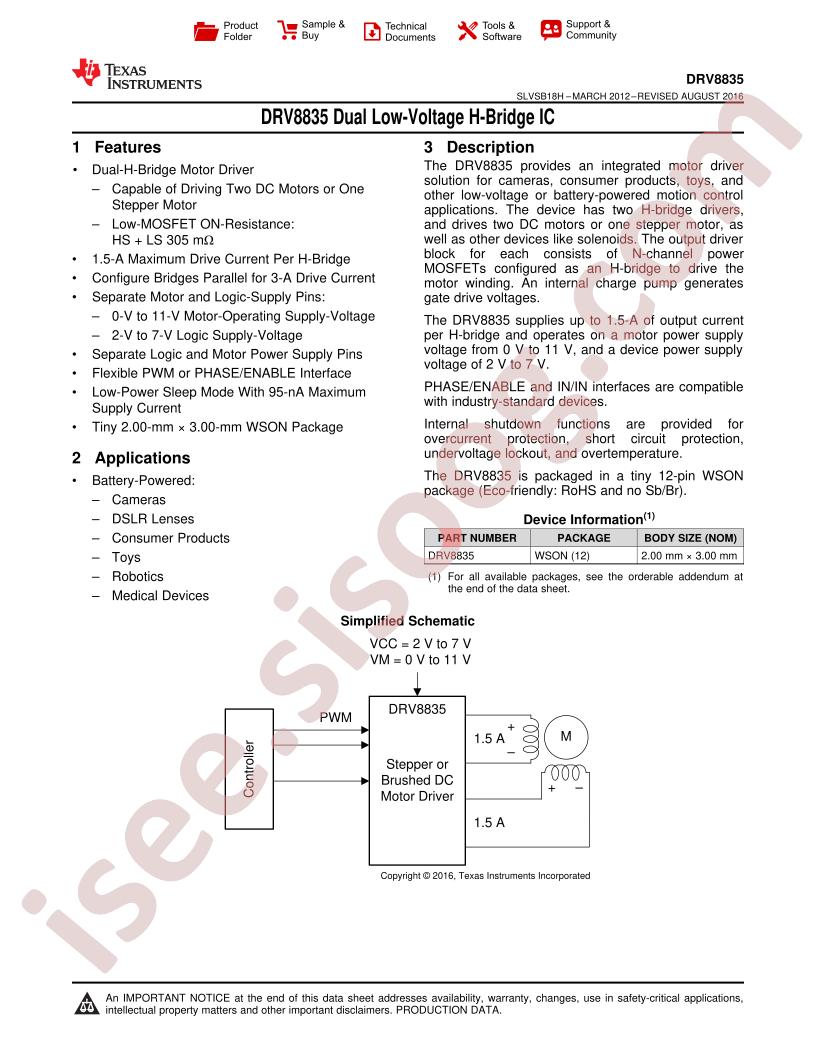

DRV8835 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8835DSSR
  • Package: DFN-12(2x3)
  • Manufacturer: Texas Instruments
  • Interface: Parallel
  • Applications: Battery Powered
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Supplier Device Package: 12-WSON (3x2)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Base Part Number: DRV8835
  • Technology: Power MOSFET
  • Motor Type - Stepper: Bipolar
  • Voltage - Load: 0V ~ 11V
  • Motor Type - AC, DC: Brushed DC
  • Package / Case: 12-WFDFN Exposed Pad
  • Part Status: Active
  • Series: -
  • Current - Output: 1.5A
  • Output Configuration: Half Bridge (4)
  • Voltage - Supply: 2V ~ 7V
  • Step Resolution: -
  • detail: Bipolar Motor Driver Power MOSFET Parallel 12-WSON (3x2)
