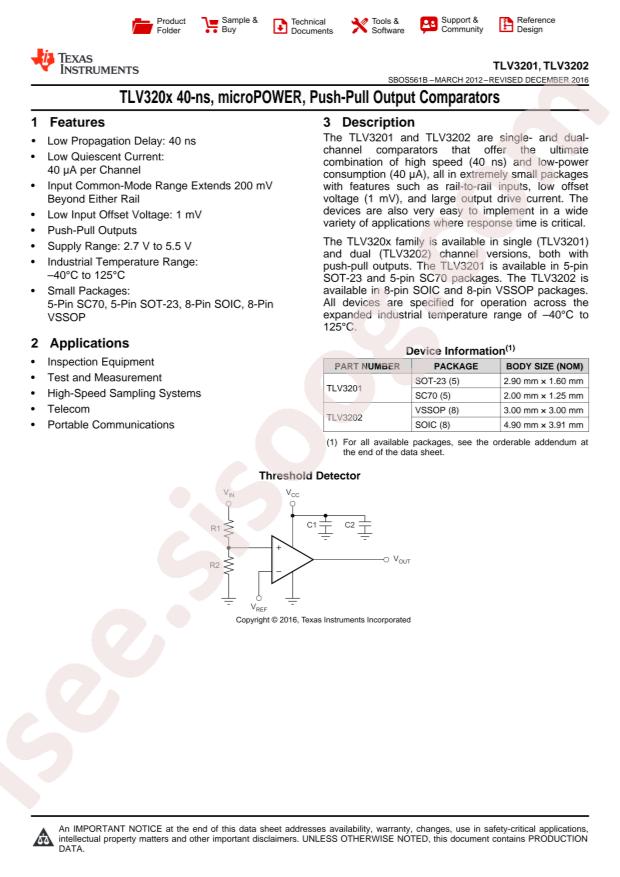

TLV3202AIDR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TLV3202AIDR |
|---|---|
| حجم فایل | 81.626 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت TLV3202AIDR |
دانلود دیتاشیت |
|---|
سایر مستندات

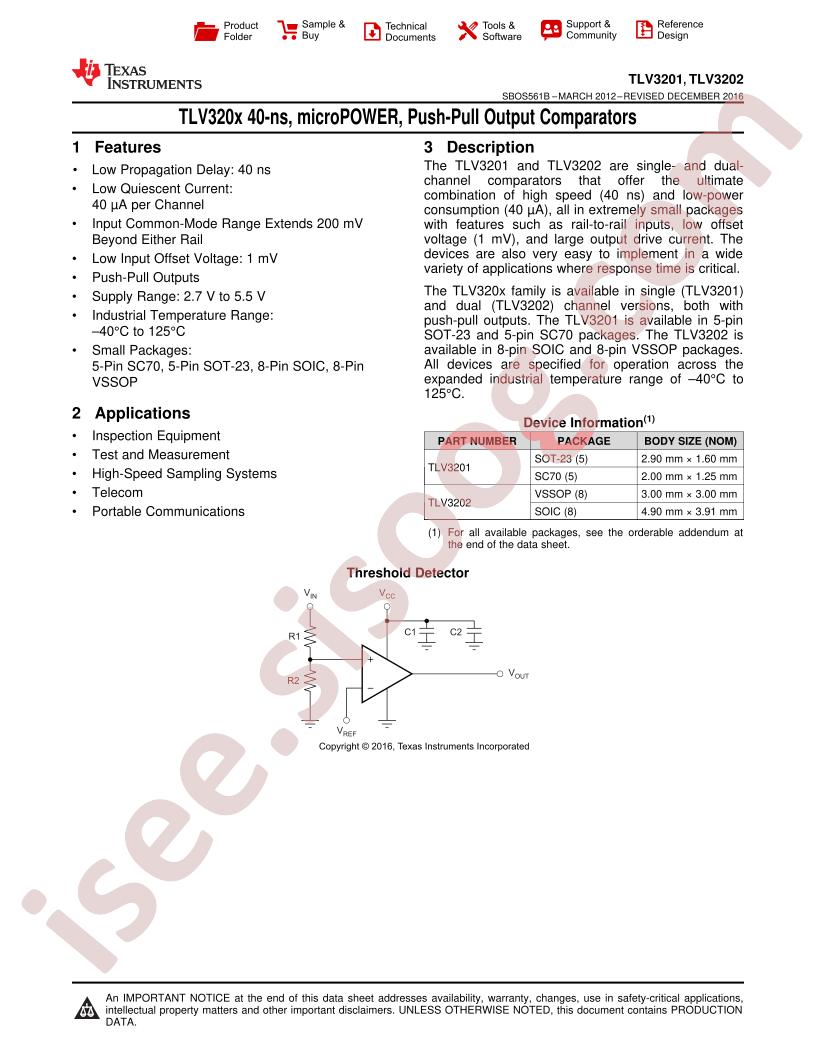

TLV3201, TLV3202 36 pages
مشخصات فنی
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments TLV3202AIDR
- Output Type: Push Pull
- Supply Current: 50uA
- Supply Voltage: 2.7V~5.5V
- Number of Elements: 2
- Operating Temperature: -40°C~+125°C
- Propagation Delay Time: 50ns
- Input Bias Current (Ib): 50pA
- Input Offset Voltage (Vos): 5mV
- Input Hysteresis Voltage (Vhys): 1.2mV
- Common Mode Rejection Ratio (CMRR): 70dB
- Package: SOP-8
- Manufacturer: Texas Instruments
- Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V
- Type: General Purpose
- Supplier Device Package: 8-SOIC
- Voltage - Input Offset (Max): 5mV @ 5V
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Current - Output (Typ): -
- Current - Input Bias (Max): 50pA @ 5V
- Propagation Delay (Max): 50ns
- Part Status: Active
- Series: -
- Base Part Number: TLV320
- CMRR, PSRR (Typ): 70dB CMRR, 85dB PSRR
- Hysteresis: 1.2mV
- Current - Quiescent (Max): 50µA
- detail: Comparator General Purpose Push-Pull 8-SOIC
