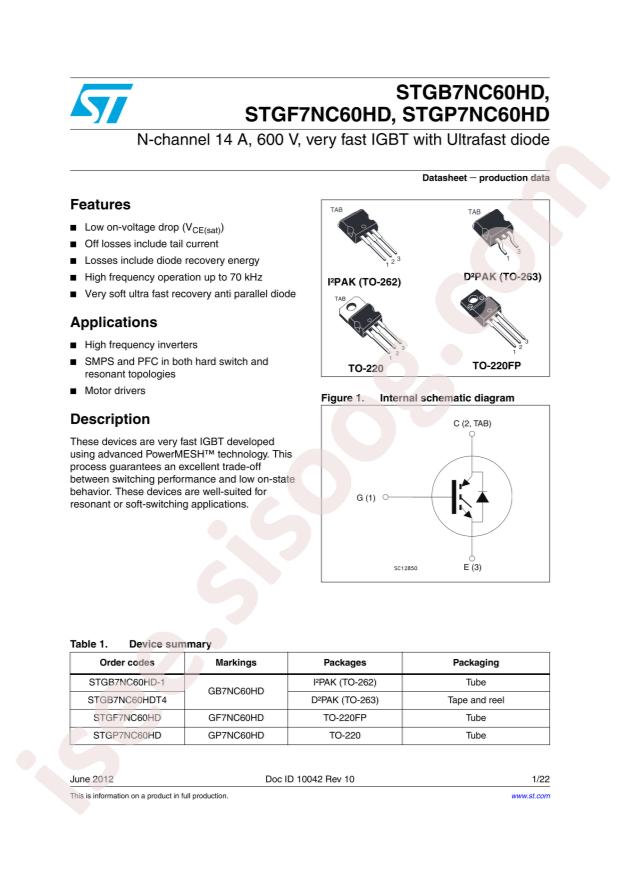

دیتاشیت STGP7NC60HD

STGx7NC60H

مشخصات دیتاشیت

نام دیتاشیت STGx7NC60H
حجم فایل 809.519 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت STGx7NC60H

STGx7NC60H Datasheet

مشخصات

  • RoHS: true
  • Type: -
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: STMicroelectronics STGP7NC60HD
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Collector Current (Ic): 25A
  • Power Dissipation (Pd): 80W
  • Turn?on Delay Time (Td(on)): 18.5ns
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 0.095mJ
  • Total Gate Charge (Qg@Ic,Vge): 35nC
  • Turn?off Delay Time (Td(off)): 72ns
  • Pulsed Collector Current (Icm): 50A
  • Turn?off Switching Loss (Eoff): 0.115mJ
  • Diode Reverse Recovery Time (Trr): 37ns
  • Collector-Emitter Breakdown Voltage (Vces): 600V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): 2.5V@15V,7A
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: PowerMESH™
  • Packaging: Tube
  • Part Status: Obsolete
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 25A
  • Current - Collector Pulsed (Icm): 50A
  • Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 7A
  • Power - Max: 80W
  • Switching Energy: 95µJ (on), 115µJ (off)
  • Input Type: Standard
  • Gate Charge: 35nC
  • Td (on/off) @ 25°C: 18.5ns/72ns
  • Test Condition: 390V, 7A, 10Ohm, 15V
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: STGP7
  • detail: IGBT 600V 25A 80W Through Hole TO-220AB
