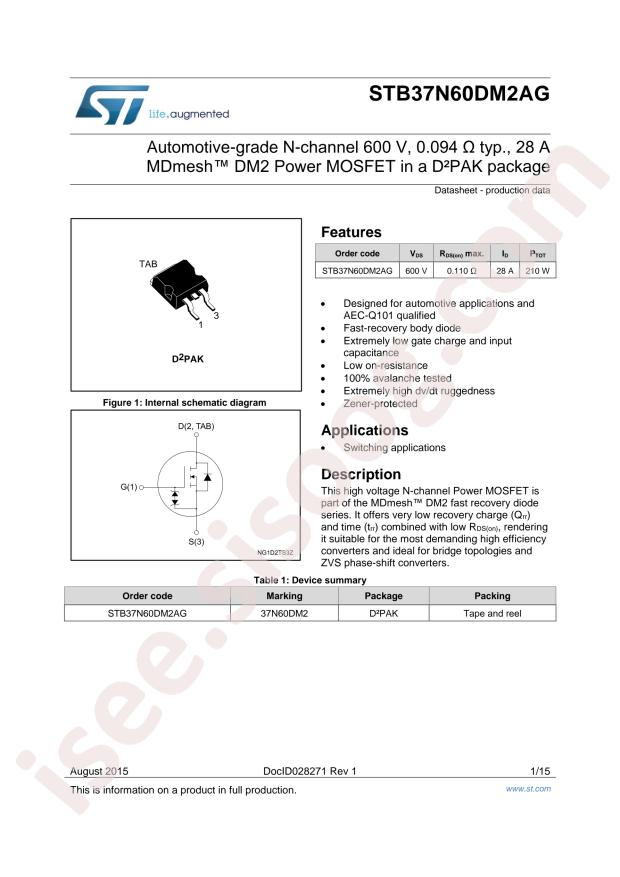

STB37N60DM2AG دیتاشیت

STB37N60DM2AG

مشخصات دیتاشیت

نام دیتاشیت STB37N60DM2AG
حجم فایل 61.779 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت STB37N60DM2AG

دانلود دیتاشیت

سایر مستندات

STB37N60DM2AG 15 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STB37N60DM2AG
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 210W
  • Total Gate Charge (Qg@Vgs): 54nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 2400pF@100V
  • Continuous Drain Current (Id): 28A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 110mΩ@10V,14A
  • Package: D2PAK
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, MDmesh™ DM2
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 28A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 110mOhm @ 14A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 54nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 2400pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 210W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D2PAK
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: STB37N
  • detail: N-Channel 600V 28A (Tc) 210W (Tc) Surface Mount D2PAK
