دیتاشیت LM2940IMP-12/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2940-N, 2940C Datasheet |
|---|---|
| حجم فایل | 2420.282 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 37 |

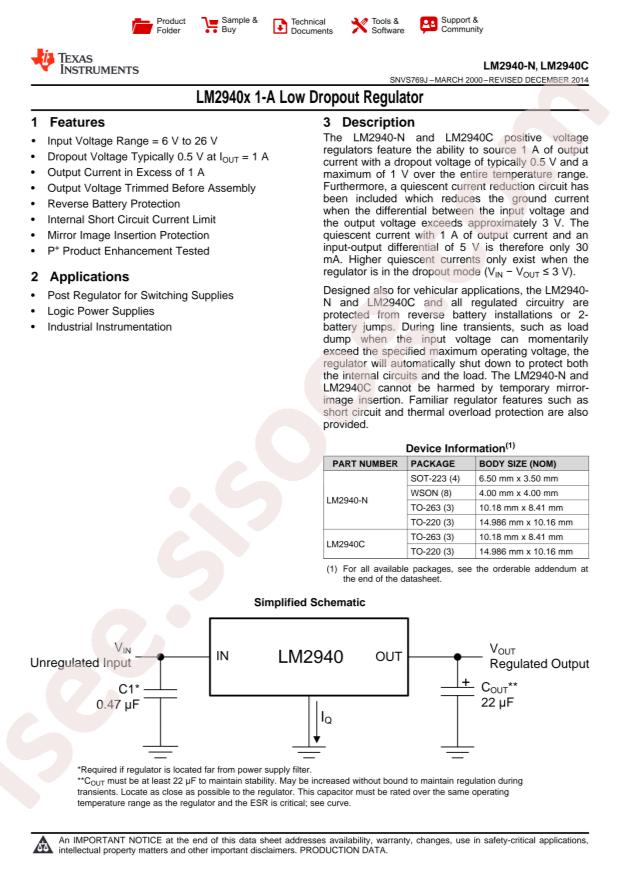

دانلود دیتاشیت LM2940-N, 2940C Datasheet |
LM2940-N, 2940C Datasheet Datasheet |
|---|
مشخصات
- Series: -
- Control Features: -
- Voltage - Output (Max): -
- Current - Quiescent (Iq): 10mA
- Supplier Device Package: SOT-223-4
- Voltage Dropout (Max): 1V @ 1A
- Number of Regulators: 1
- PSRR: 66dB (120Hz)
- Mounting Type: Surface Mount
- Voltage - Output (Min/Fixed): 12V
- Current - Output: 1A
- Voltage - Input (Max): 26V
- Current - Supply (Max): 15mA
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Packaging: Cut Tape (CT)
- Manufacturer: Texas Instruments
- Base Part Number: LM2940
- Package / Case: TO-261-4, TO-261AA
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Operating Temperature: -40°C ~ 85°C
- detail: Linear Voltage Regulator IC 1 Output 1A SOT-223-4
