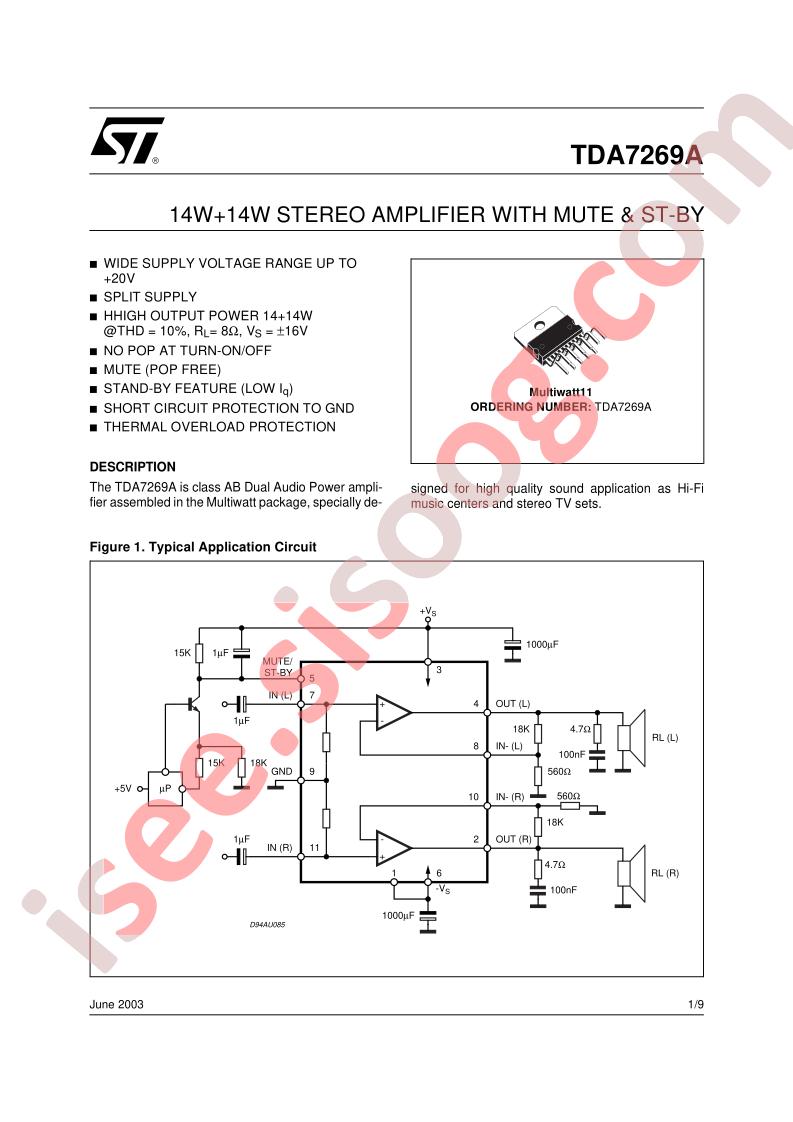

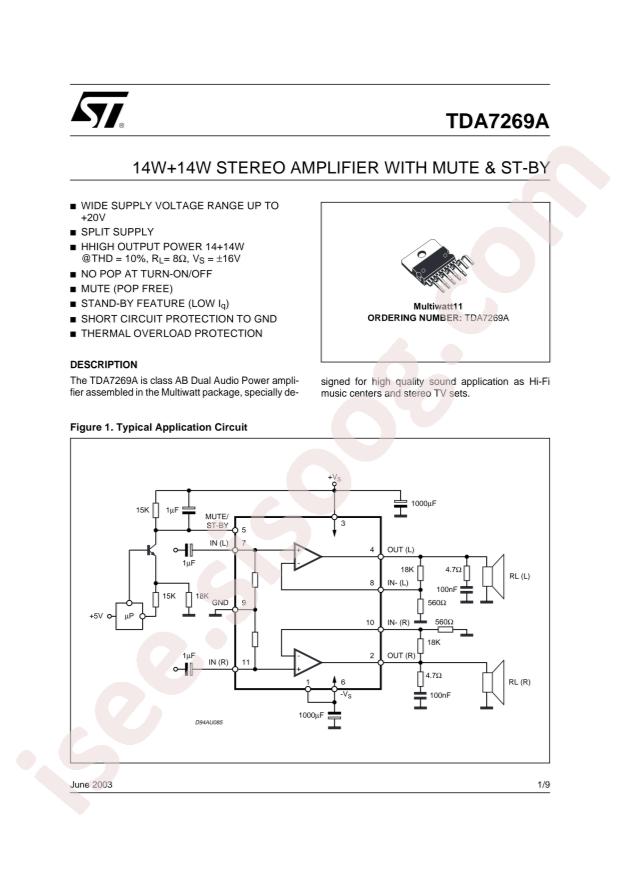

دیتاشیت TDA7269A
مشخصات دیتاشیت
| نام دیتاشیت |
TDA7269A
|
| حجم فایل |
165.283
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Audio Power OpAmps
-
Datasheet:
STMicroelectronics TDA7269A
-
Output Power:
14Wx2@8Ω
-
Supply Voltage:
5V~20V
-
Speaker Channels:
2
-
Operating Temperature:
0°C~+70°C
-
Type of Power Amplifier:
Class AB
-
Package:
Multiwatt-11
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Type:
Class AB
-
Output Type:
2-Channel (Stereo)
-
Max Output Power x Channels @ Load:
14W x 2 @ 8Ohm
-
Voltage - Supply:
±5V ~ 20V
-
Features:
Depop, Mute, Short-Circuit and Thermal Protection, Standby
-
Mounting Type:
Through Hole
-
Supplier Device Package:
11-Multiwatt
-
Package / Case:
Multiwatt-11 (Vertical, Bent and Staggered Leads)
-
Base Part Number:
TDA7269
-
detail:
Amplifier IC 2-Channel (Stereo) Class AB 11-Multiwatt
