دیتاشیت LM2940IMP-9.0/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2940(-N, C) |
|---|---|
| حجم فایل | 2497.017 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |
دانلود دیتاشیت LM2940(-N, C) |

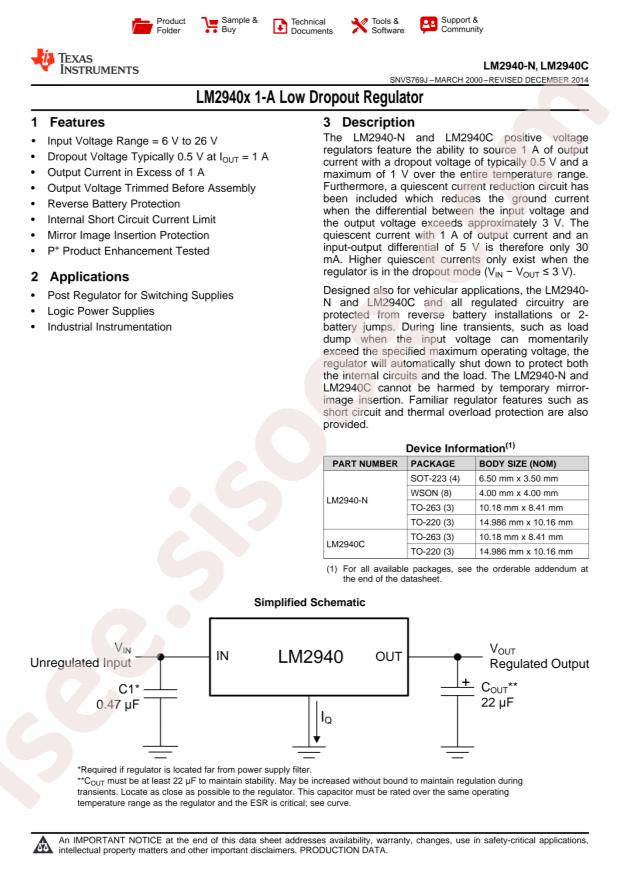

LM2940(-N, C) Datasheet |
|---|
مشخصات
- Control Features: -
- Base Part Number: LM2940
- Package / Case: TO-261-4, TO-261AA
- Current - Supply (Max): 15mA
- Part Status: Obsolete
- Current - Output: 1A
- PSRR: 64dB (120Hz)
- Series: -
- Voltage - Output (Min/Fixed): 9V
- Mounting Type: Surface Mount
- Number of Regulators: 1
- Current - Quiescent (Iq): 10mA
- Output Configuration: Positive
- Voltage Dropout (Max): 1V @ 1A
- Operating Temperature: -40°C ~ 85°C
- Supplier Device Package: SOT-223-4
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 26V
- Output Type: Fixed
- Packaging: Cut Tape (CT)
- Voltage - Output (Max): -
- detail: Linear Voltage Regulator IC 1 Output 1A SOT-223-4
