دیتاشیت VNH7040AYTR
مشخصات دیتاشیت
| نام دیتاشیت | VNH7040AY Datasheet |
|---|---|
| حجم فایل | 1627.619 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 48 |

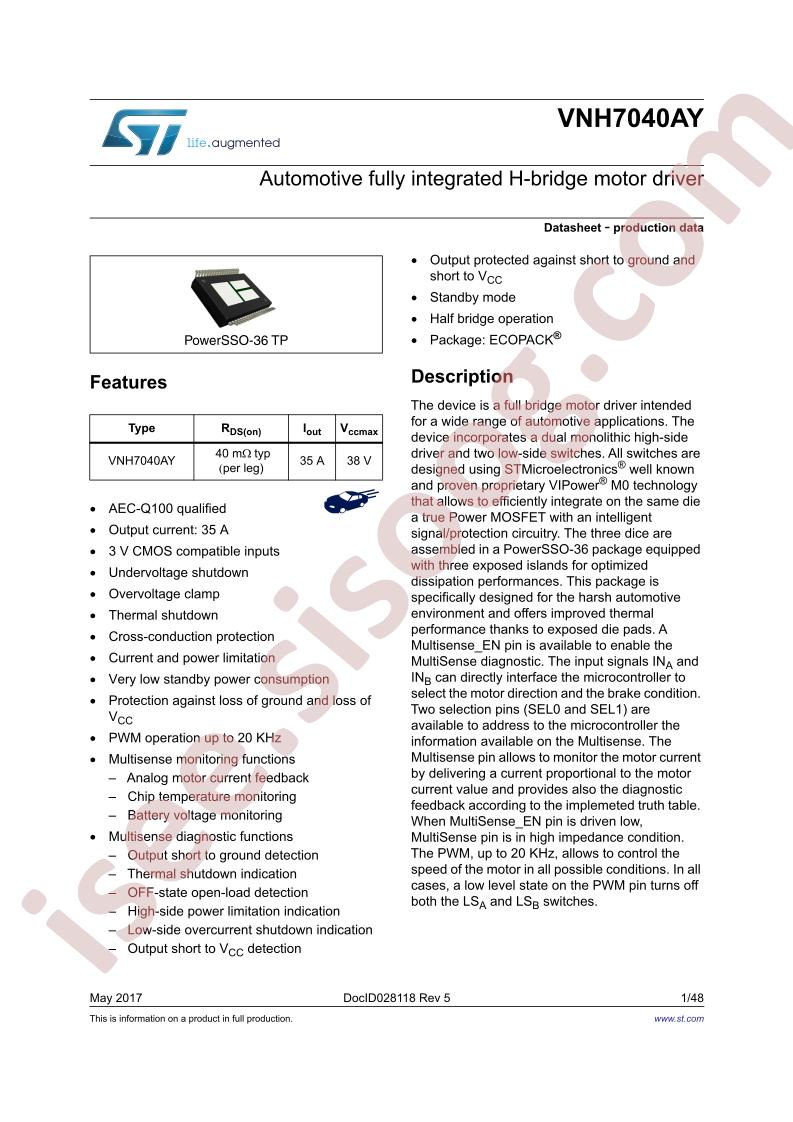

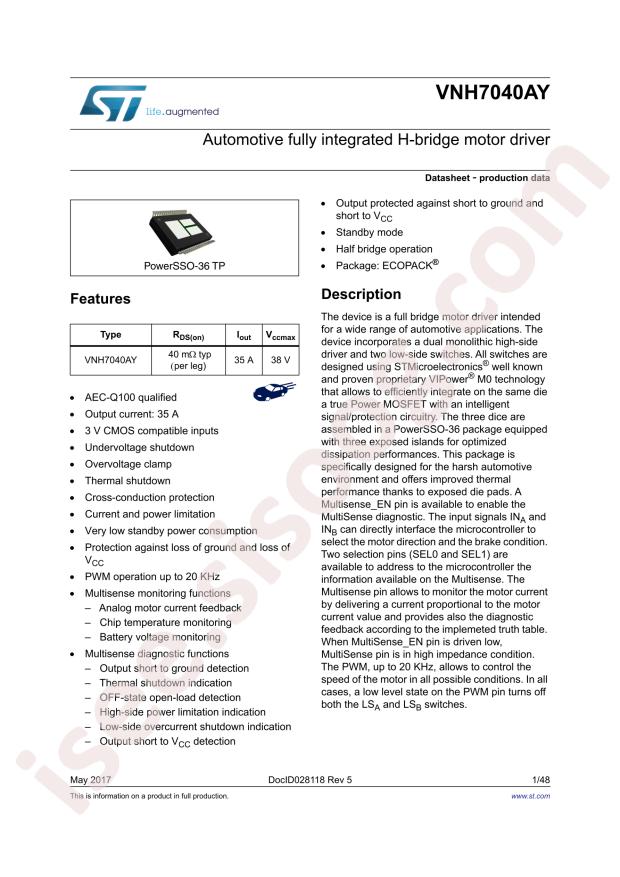

دانلود دیتاشیت VNH7040AY Datasheet |
VNH7040AY Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Brush DC Motor
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: STMicroelectronics VNH7040AYTR
- Interface: PWM
- Output Current: 35A
- Supply Voltage: 4V~28V
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: BFSOP-36-Power
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q100, VIPOWER™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Motor Type - Stepper: -
- Motor Type - AC, DC: Brushed DC
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (2)
- Technology: Power MOSFET
- Step Resolution: -
- Applications: Automotive
- Current - Output: 35A
- Voltage - Supply: 4V ~ 28V
- Voltage - Load: 4V ~ 28V
- Mounting Type: Surface Mount
- Package / Case: 36-PowerBFSOP (0.295", 7.50mm Width)
- Supplier Device Package: PowerSSO-36
- Base Part Number: VNH7040
- detail: Motor Driver Power MOSFET PWM PowerSSO-36
