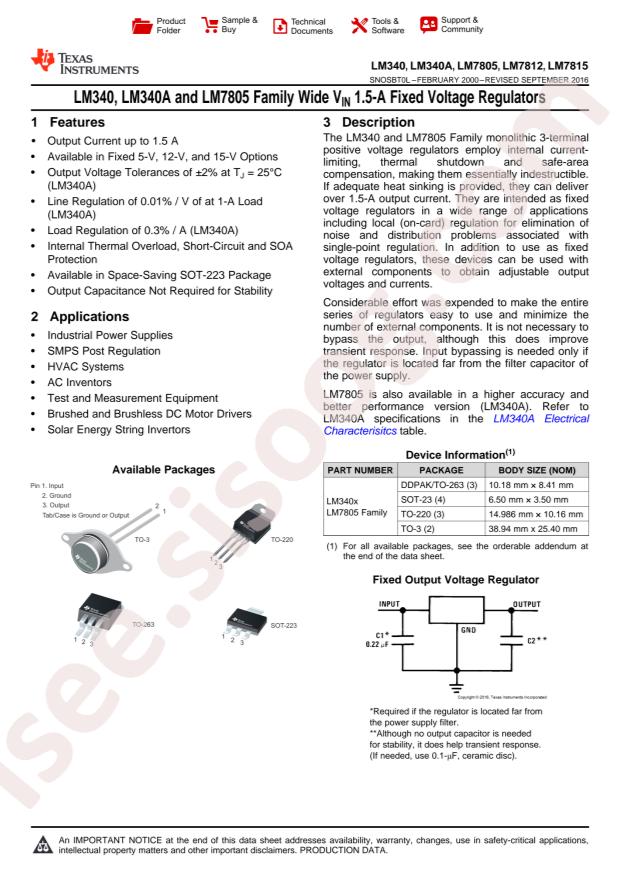

- دیتاشیت LM340MP-5.0/NOPB
دیتاشیت LM340MP-5.0/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM340MP-5.0/NOPB |
|---|---|
| حجم فایل | 101.977 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
LM340MP-5.0/NOPB |
دانلود دیتاشیت |
|---|
سایر مستندات
LM340(A), LM78xx Datasheet 34 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM340MP-5.0/NOPB
- Output Type: Fixed
- Output Current: 1A
- Output Voltage: 5V
- Dropout Voltage: 2V@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: 0°C~+125°C
- Quiescent Current (Ground Current): 8mA
- Power Supply Rejection Ratio (PSRR): 70dB@(120Hz)
- Package: SOT-223
- Manufacturer: Texas Instruments
- Series: -
- Supplier Device Package: SOT-223-4
- Voltage - Output (Min/Fixed): 5V
- Mounting Type: Surface Mount
- Current - Output: 1.5A
- Voltage - Input (Max): 35V
- Base Part Number: LM340
- Voltage - Output (Max): -
- PSRR: 70dB (120Hz)
- Current - Quiescent (Iq): 8mA
- Packaging: Cut Tape (CT)
- Control Features: -
- Package / Case: TO-261-4, TO-261AA
- Number of Regulators: 1
- Protection Features: Over Current, Short Circuit
- Output Configuration: Positive
- Voltage Dropout (Max): 2V @ 1A
- Part Status: Active
- detail: Linear Voltage Regulator IC 1 Output 1.5A SOT-223-4
