L6206Q دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت L6206Q	دانلود دیتاشیت

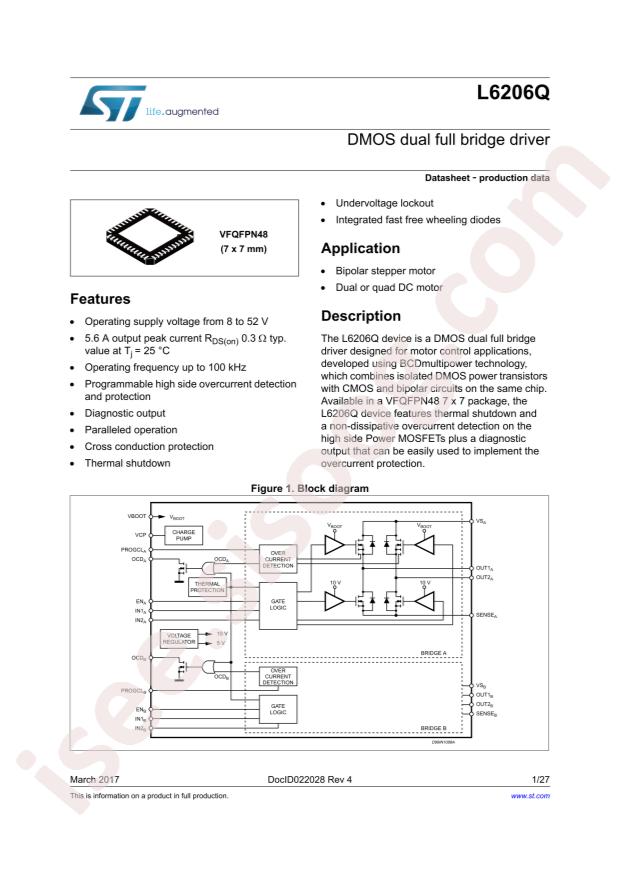

L6206Q 27 pages

RoHS: true
Feature: Overcurrent Protection(OCP);Thermal Protection(OPT)
Category: Power Supply Chip/Gate Drive ICs
Datasheet: STMicroelectronics L6206Q
Load Type: MOSFET
Supply Voltage: 8V~52V
Driven Configuration: Half Bridge
Operating Temperature: -25°C~+125°C@(Tj)
Package: VFQFPN-48(7x7)
Manufacturer: STMicroelectronics
Series: -
Packaging: Tray
Part Status: Active
Output Configuration: Half Bridge (4)
Applications: DC Motors, Stepper Motors, Voltage Regulators
Interface: Logic
Technology: BCDMOS
Rds On (Typ): 280mOhm LS, 340mOhm HS
Current - Output / Channel: 2.5A
Current - Peak Output: 5.6A
Voltage - Supply: 8V ~ 52V
Voltage - Load: 8V ~ 52V
Features: Bootstrap Circuit
Fault Protection: Current Limiting, Over Temperature, UVLO
Mounting Type: Surface Mount
Package / Case: 48-VFQFN Exposed Pad
Supplier Device Package: 48-VFQFPN (7x7)
Base Part Number: L6206
detail: Half Bridge (4) Driver DC Motors, Stepper Motors, Voltage Regulators BCDMOS 48-VFQFPN (7x7)
