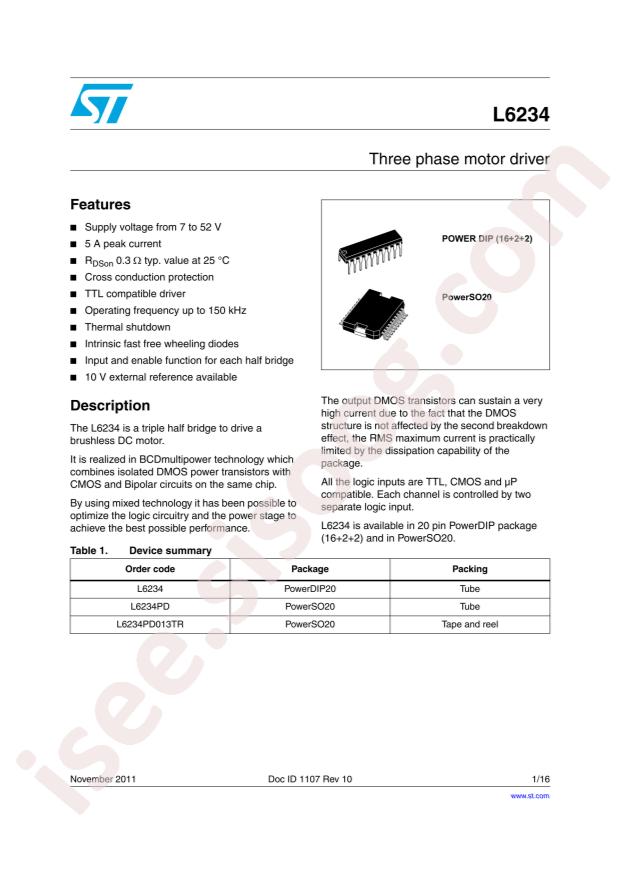

دیتاشیت L6234PD013TR

L6234

مشخصات دیتاشیت

نام دیتاشیت L6234
حجم فایل 501.52 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت L6234

L6234 Datasheet

مشخصات

  • RoHS: true
  • Type: 无刷直流BLDC
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: STMicroelectronics L6234PD013TR
  • Interface: Parallel
  • Output Current: 4A
  • Supply Voltage: 7V~52V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Package: SO-20
  • Manufacturer: STMicroelectronics
  • Series: STSPIN L62
  • Packaging: Tube
  • Part Status: Discontinued at Digi-Key
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (3)
  • Technology: BiCDMOS
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 2.8A
  • Voltage - Supply: 7V ~ 52V
  • Voltage - Load: 7V ~ 52V
  • Mounting Type: Through Hole
  • Package / Case: 20-DIP (0.300", 7.62mm)
  • Supplier Device Package: 20-PowerDIP
  • Base Part Number: L6234
  • detail: Motor Driver BiCDMOS Parallel 20-PowerDIP
