دیتاشیت TPS73501DRVR

مشخصات دیتاشیت

TPS73501DRVR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

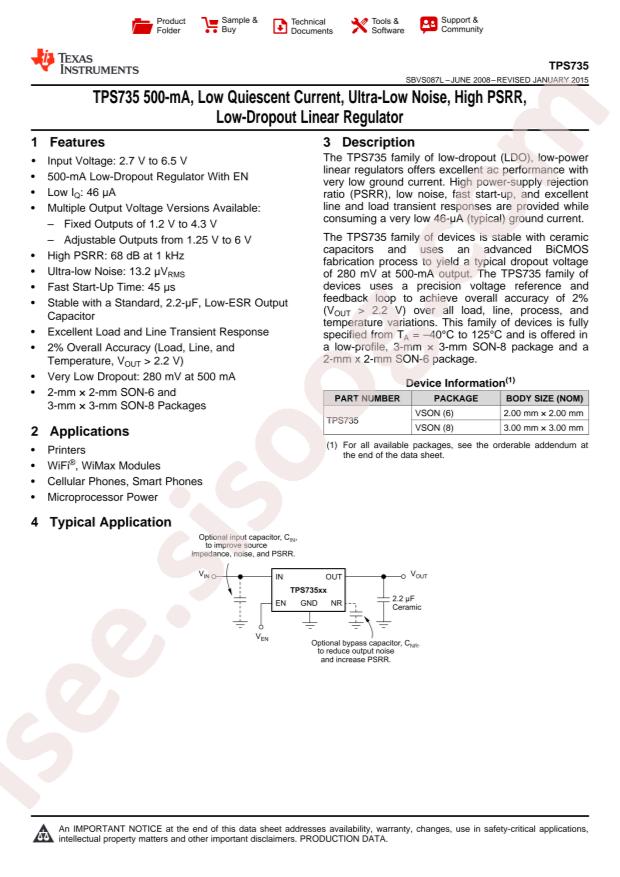

Datasheet: Texas Instruments TPS73501DRVR
Output Type: Adjustable
Output Current: 500mA
Output Voltage: 1.25V~6V
Dropout Voltage: 500mV@(500mA)
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 6.5V
Operating Temperature: -40°C~+125°C
Quiescent Current (Ground Current): 65uA
Power Supply Rejection Ratio (PSRR): 66dB@(100Hz),22dB@(100kHz)
Package: DFN-6-EP(2x2)
Manufacturer: Texas Instruments
Series: -
Supplier Device Package: 6-WSON (2x2)
Voltage - Output (Min/Fixed): 1.25V
Mounting Type: Surface Mount
Current - Output: 500mA
Voltage - Input (Max): 6.5V
Base Part Number: TPS735
Voltage - Output (Max): 6V
PSRR: 66dB ~ 22dB (100Hz ~ 100kHz)
Current - Quiescent (Iq): 65µA
Packaging: Cut Tape (CT)
Control Features: Enable
Package / Case: 6-WDFN Exposed Pad
Number of Regulators: 1
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Output Configuration: Positive
Voltage Dropout (Max): 0.5V @ 500mA
Part Status: Active
detail: Linear Voltage Regulator IC 1 Output 500mA 6-WSON (2x2)
