STD26P3LLH6 دیتاشیت

STD26P3LLH6

مشخصات دیتاشیت

نام دیتاشیت STD26P3LLH6
حجم فایل 57.508 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

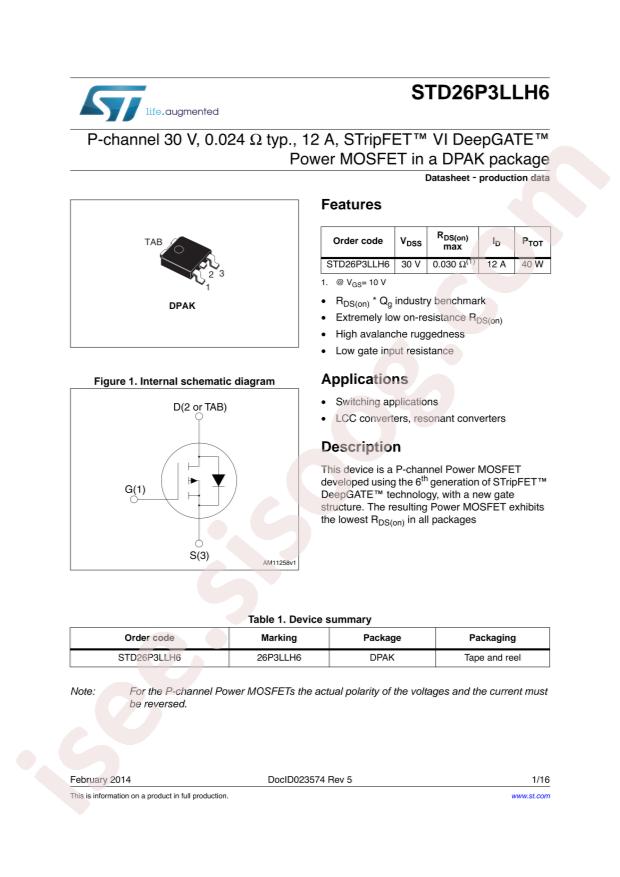

مشاهده دیتاشیت STD26P3LLH6

دانلود دیتاشیت

سایر مستندات

STD26P3LLH6 16 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD26P3LLH6
  • Power Dissipation (Pd): 40W
  • Total Gate Charge (Qg@Vgs): 12nC@4.5V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 1450pF@25V
  • Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 30mΩ@6A,10V
  • Package: DPAK(TO-252-3)
  • Manufacturer: STMicroelectronics
  • Series: DeepGATE™, STripFET™ VI
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 30mOhm @ 6A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 12nC @ 4.5V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1450pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 40W (Tc)
  • Operating Temperature: 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD26P
  • detail: P-Channel 30V 12A (Tc) 40W (Tc) Surface Mount DPAK
