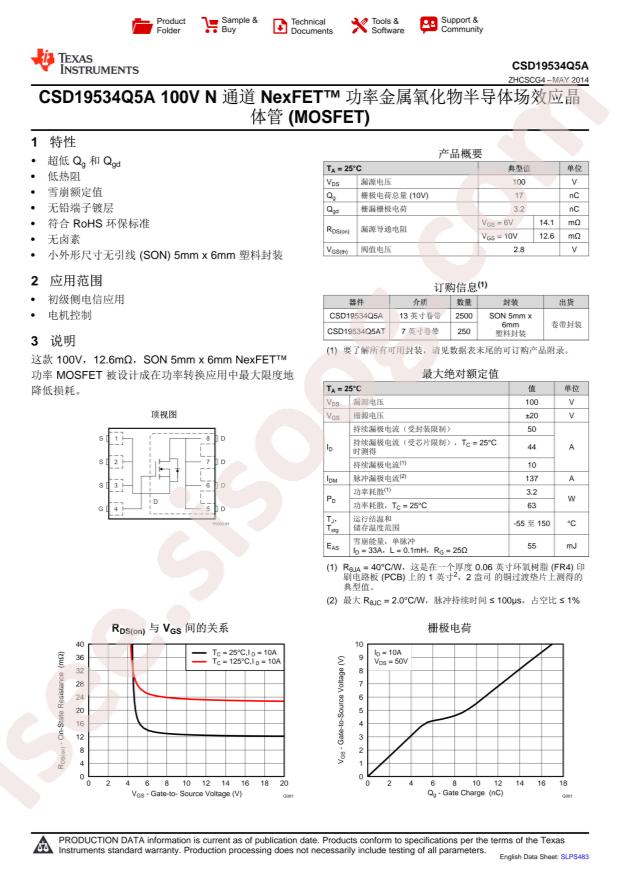

CSD19534Q5AT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD19534Q5AT
|
|
حجم فایل
|
85.696
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD19534Q5AT
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3.2W;63W
-
Total Gate Charge (Qg@Vgs):
22nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
1680pF@50V
-
Continuous Drain Current (Id):
44A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
15.1mΩ@10A,10V
-

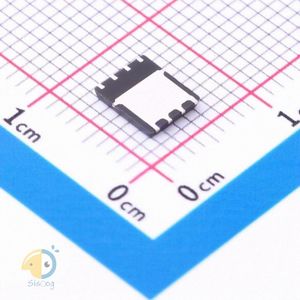

Package:
VSONP-8
-
Manufacturer:
Texas Instruments
-
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
-
Series:
NexFET™
-
Gate Charge (Qg) (Max) @ Vgs:
22nC @ 10V
-
FET Feature:
-
-
Drain to Source Voltage (Vdss):
100V
-
Rds On (Max) @ Id, Vgs:
15.1mOhm @ 10A, 10V
-
Supplier Device Package:
8-VSONP (5x6)
-
Vgs (Max):
±20V
-
Mounting Type:
Surface Mount
-
Technology:
MOSFET (Metal Oxide)
-
Packaging:
Cut Tape (CT)
-
Power Dissipation (Max):
3.2W (Ta), 63W (Tc)
-
Current - Continuous Drain (Id) @ 25°C:
50A (Ta)
-
Vgs(th) (Max) @ Id:
3.4V @ 250µA
-
Base Part Number:
CSD19534
-
FET Type:
N-Channel
-
Package / Case:
8-PowerTDFN
-
Input Capacitance (Ciss) (Max) @ Vds:
1680pF @ 50V
-
Part Status:
Active
-
detail:
N-Channel 100V 50A (Ta) 3.2W (Ta), 63W (Tc) Surface Mount 8-VSONP (5x6)
