STPS5L60SY دیتاشیت

STPS5L60SY

مشخصات دیتاشیت

نام دیتاشیت STPS5L60SY
حجم فایل 42.788 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

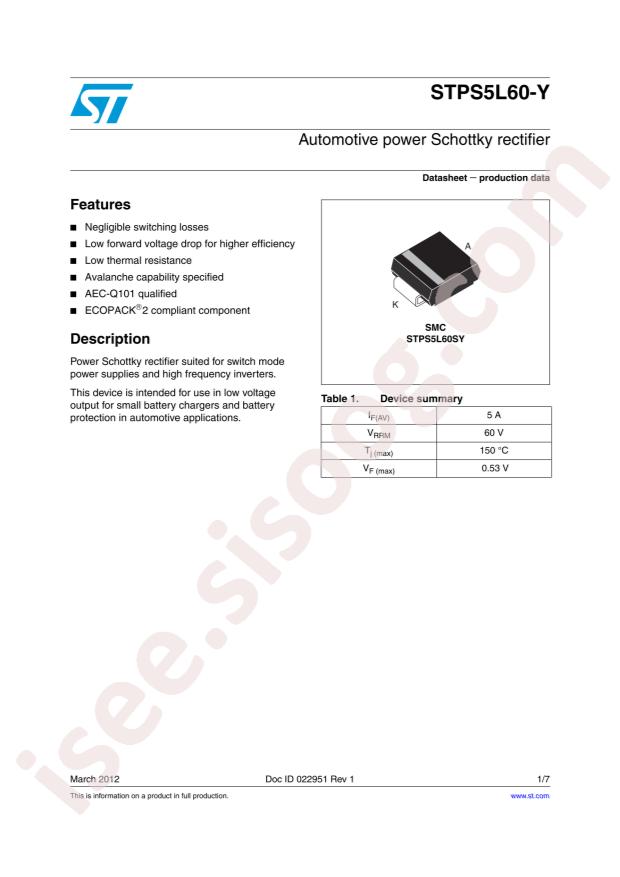

مشاهده دیتاشیت STPS5L60SY

دانلود دیتاشیت

سایر مستندات

STPS5L60-Y 7 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS5L60SY
  • Reverse Voltage (Vr): 60V
  • Forward Voltage (Vf@If): 520mV@5A
  • Reverse Leakage Current (Ir): 220uA@60V
  • Average Rectified Current (Io): 5A

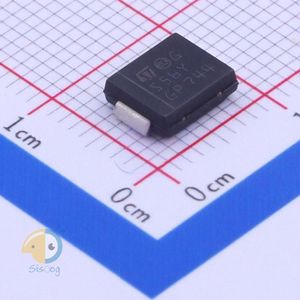

  • Package: SMC(DO-214AB)
  • Manufacturer: STMicroelectronics
  • Series: Q Automotive
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 60V
  • Current - Average Rectified (Io): 5A
  • Voltage - Forward (Vf) (Max) @ If: 520mV @ 5A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 220µA @ 60V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AB, SMC
  • Supplier Device Package: SMC
  • Operating Temperature - Junction: -40°C ~ 150°C
  • Base Part Number: STPS5
  • detail: Diode Schottky 60V 5A Surface Mount SMC
