VNN3NV04PTR-E دیتاشیت

VNN3NV04PTR-E

مشخصات دیتاشیت

نام دیتاشیت VNN3NV04PTR-E
حجم فایل 57.215 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

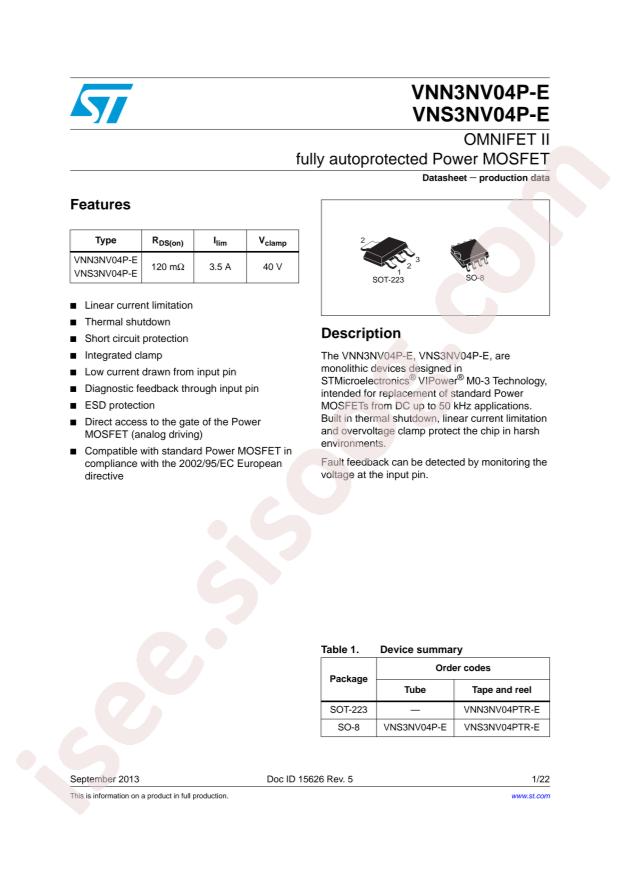

مشاهده دیتاشیت VNN3NV04PTR-E

دانلود دیتاشیت

سایر مستندات

VNN3NV04P-E, VNS3NV04P-E 22 pages

مشخصات فنی

  • RoHS: true
  • Feature: Overcurrent Protection(OCP);Thermal Protection(OPT);Overvoltage protection(OVP)
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: STMicroelectronics VNN3NV04PTR-E
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: SOT-223-4
  • Manufacturer: STMicroelectronics
  • Series: OMNIFET II™, VIPower™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 36V (Max)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 3.5A
  • Rds On (Typ): 120mOhm (Max)
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-223
  • Package / Case: TO-261-4, TO-261AA
  • Base Part Number: VNN3NV
  • detail: Power Switch/Driver 1:1 N-Channel 3.5A SOT-223
