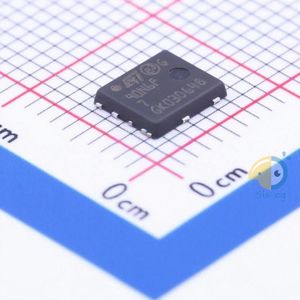

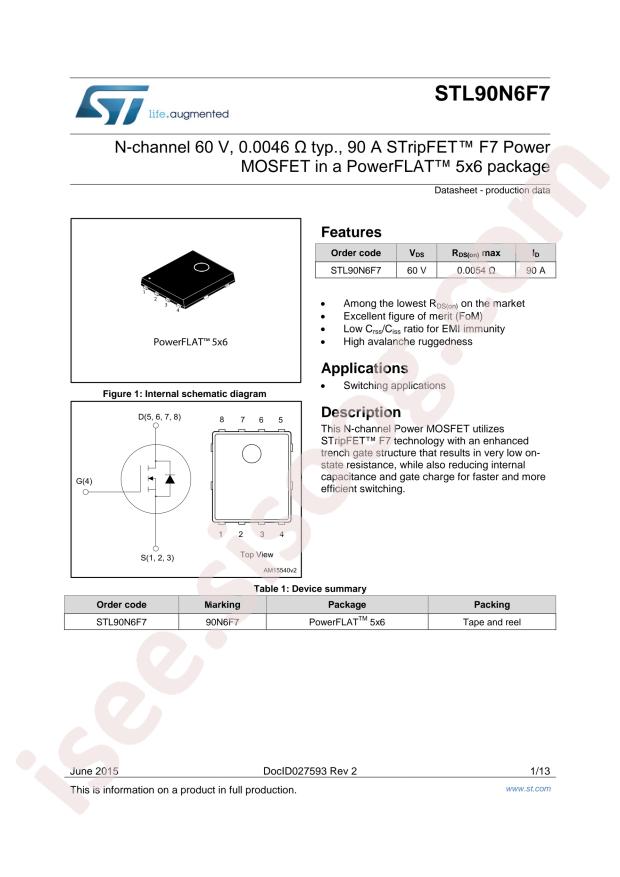

STL90N6F7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL90N6F7
|
|
حجم فایل
|
57.632
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STL90N6F7
-
Power Dissipation (Pd):
94W
-
Drain Source Voltage (Vdss):
60V
-
Continuous Drain Current (Id):
90A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
5.4mΩ@10V,10.5A
-
Package:
PowerFLAT(5x6)
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ F7
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
90A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
5.4mOhm @ 10.5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
25nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1600pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
4.8W (Ta), 94W (Tc)
-
Operating Temperature:
175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (5x6)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL90
-
detail:
N-Channel 60V 90A (Tc) 4.8W (Ta), 94W (Tc) Surface Mount PowerFlat™ (5x6)
