TPS61222DCKT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS61222DCKT
|
|
حجم فایل
|
94.428
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
27
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType
-
Topology:
Boost
-
Datasheet:
Texas Instruments TPS61222DCKT
-
Output Type:
Fixed
-
Input Voltage:
0.7V~5.5V
-
Output Voltage:
5V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
200mA
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
Yes
-

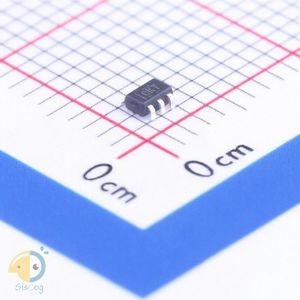

Package:
SOT-363-6(SC-70-6)
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Supplier Device Package:
SC-70-6
-
Voltage - Output (Min/Fixed):
5V
-
Voltage - Input (Min):
0.7V
-
Mounting Type:
Surface Mount
-
Output Configuration:
Positive
-
Package / Case:
6-TSSOP, SC-88, SOT-363
-
Voltage - Output (Max):
-
-
Synchronous Rectifier:
Yes
-
Base Part Number:
TPS612
-
Packaging:
Cut Tape (CT)
-
Frequency - Switching:
Up to 2MHz
-
Current - Output:
200mA (Switch)
-
Voltage - Input (Max):
5.5V
-
Part Status:
Active
-
detail:
Boost Switching Regulator IC Positive Fixed 5V 1 Output 200mA (Switch) 6-TSSOP, SC-88, SOT-363
