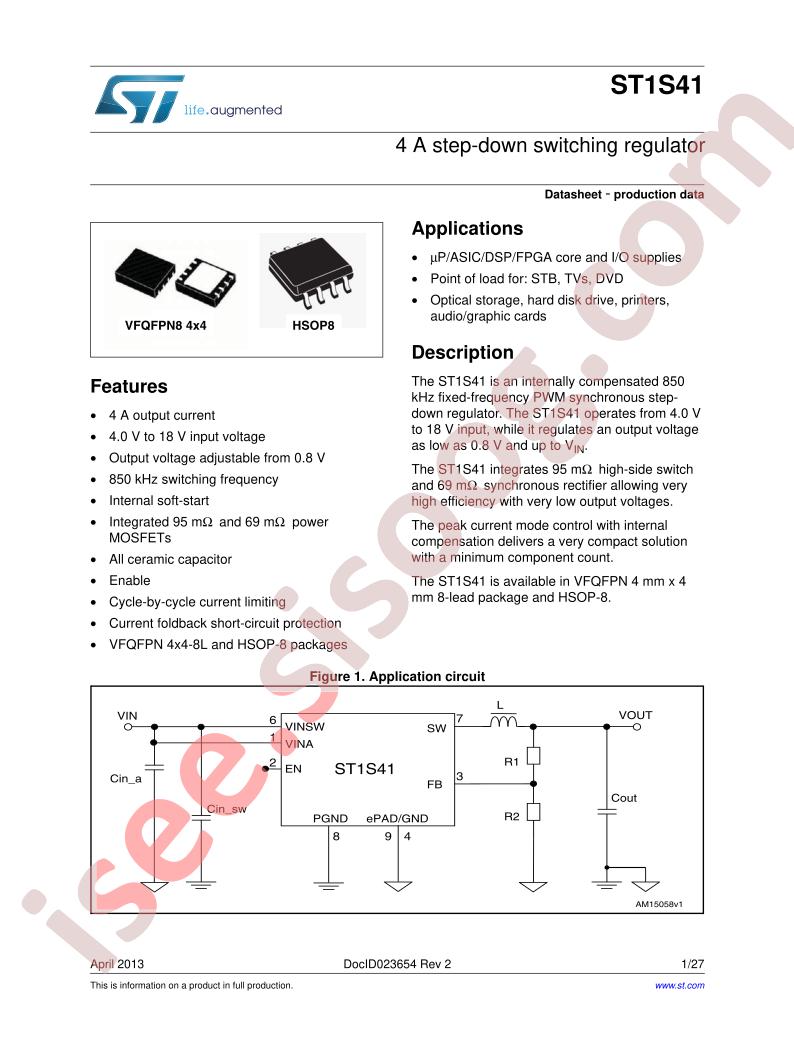

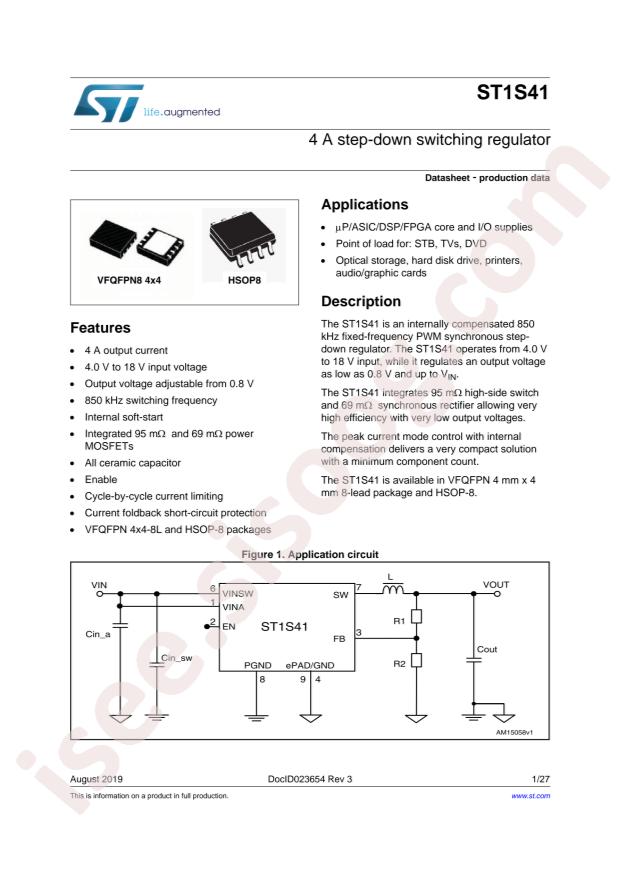

دیتاشیت ST1S41PHR
مشخصات دیتاشیت
| نام دیتاشیت |
ST1S41
|
| حجم فایل |
1279.574
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
27
|
مشخصات
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Function:
Step-Down
-
Output Configuration:
Positive
-
Topology:
Buck
-
Output Type:
Adjustable
-
Number of Outputs:
1
-
Voltage - Input (Min):
4V
-
Voltage - Input (Max):
18V
-
Voltage - Output (Min/Fixed):
0.8V
-
Voltage - Output (Max):
18V
-
Current - Output:
4A
-
Frequency - Switching:
850kHz
-
Synchronous Rectifier:
Yes
-
Operating Temperature:
-40°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width) Exposed Pad
-
Supplier Device Package:
8-HSOP
-
Base Part Number:
ST1S41
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 4A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
