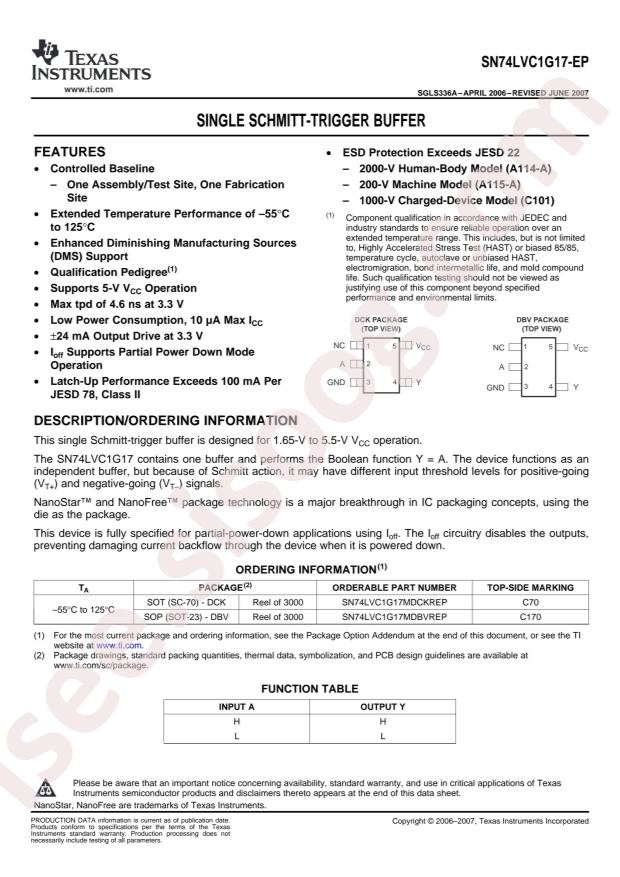

SN74LVC1G17MDBVREP دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC1G17MDBVREP |
|---|---|
| حجم فایل | 103.66 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت SN74LVC1G17MDBVREP |
دانلود دیتاشیت |
|---|
سایر مستندات
SN74LVC1G17-EP 16 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LVC1G17MDBVREP
- Input type: Schmitt Trigger
- output type: Push Pull
- Logic Family: 74LVC
- Sink Current: 32mA
- Source Current: 32mA
- Supply Voltage: 1.65V~5.5V
- Number of Elements: 1
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 1
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Series: 74LVC
- Packaging: Cut Tape (CT)
- Supplier Device Package: SOT-23-5
- Base Part Number: SN74LVC1G
- Mounting Type: Surface Mount
- Current - Output High, Low: 32mA, 32mA
- Voltage - Supply: 1.65V ~ 5.5V
- Package / Case: SC-74A, SOT-753
- Logic Type: Buffer, Non-Inverting
- Part Status: Active
- detail: Buffer, Non-Inverting 1 Element 1 Bit per Element Push-Pull Output SOT-23-5
