دیتاشیت LM317AEMP/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM317A Datasheet |
|---|---|
| حجم فایل | 4961.904 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 43 |

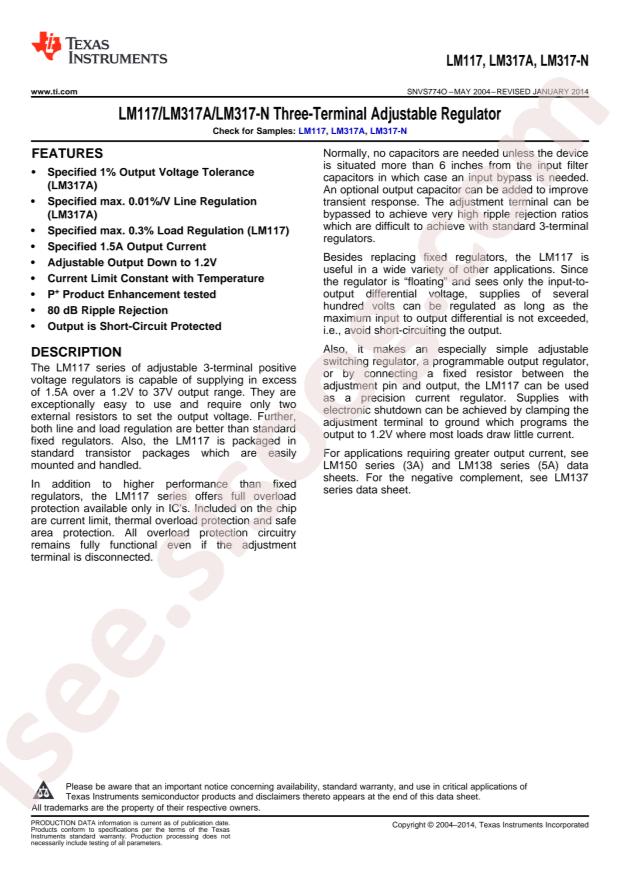

دانلود دیتاشیت LM317A Datasheet |
LM317A Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM317AEMP/NOPB
- Output Type: Adjustable
- Output Current: 1.5A
- Output Voltage: 1.25V~37V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Package: SOT-223
- Manufacturer: Texas Instruments
- Series: -
- Supplier Device Package: SOT-223-4
- Voltage - Output (Min/Fixed): 1.25V
- Mounting Type: Surface Mount
- Current - Output: 1.5A
- Voltage - Input (Max): 40V
- Base Part Number: LM317
- Voltage - Output (Max): 37V
- PSRR: 80dB ~ 65dB (120Hz)
- Current - Quiescent (Iq): 10mA
- Packaging: Cut Tape (CT)
- Control Features: -
- Operating Temperature: -40°C ~ 125°C
- Package / Case: TO-261-4, TO-261AA
- Number of Regulators: 1
- Protection Features: Over Temperature, Short Circuit
- Output Configuration: Positive
- Voltage Dropout (Max): -
- Part Status: Active

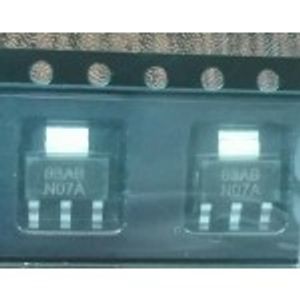

- detail: Linear Voltage Regulator IC 1 Output 1.5A SOT-223-4
