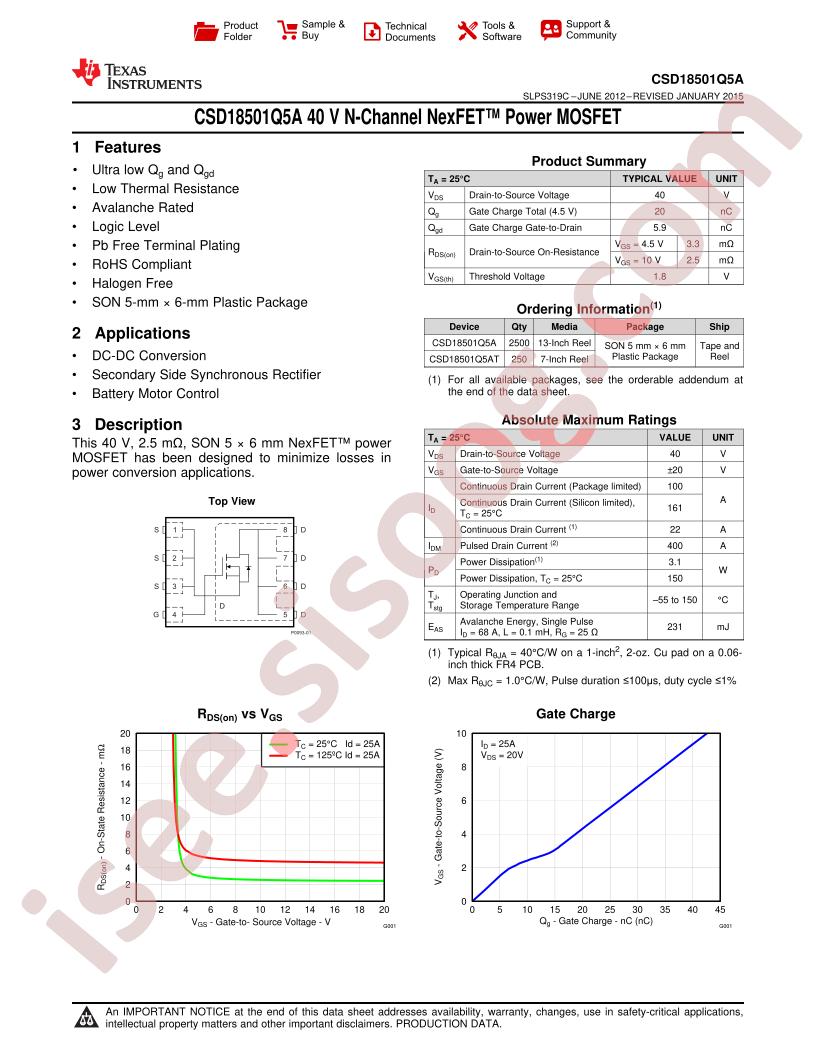

CSD18501Q5A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD18501Q5A
|
|
حجم فایل
|
788.236
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Series:
NexFET™
-
Gate Charge (Qg) (Max) @ Vgs:
50nC @ 10V
-
FET Feature:
-
-
Drain to Source Voltage (Vdss):
40V
-
Rds On (Max) @ Id, Vgs:
3.2mOhm @ 25A, 10V
-
Supplier Device Package:
8-VSONP (5x6)
-
Vgs (Max):
±20V
-
Mounting Type:
Surface Mount
-
Technology:
MOSFET (Metal Oxide)
-
Packaging:
Cut Tape (CT)
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
3.1W (Ta), 150W (Tc)
-
Current - Continuous Drain (Id) @ 25°C:
22A (Ta), 100A (Tc)
-
Vgs(th) (Max) @ Id:
2.3V @ 250µA
-
Base Part Number:
CSD1850
-
FET Type:
N-Channel
-
Package / Case:
8-PowerTDFN
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Input Capacitance (Ciss) (Max) @ Vds:
3840pF @ 20V
-
Part Status:
Active
-
detail:
N-Channel 40V 22A (Ta), 100A (Tc) 3.1W (Ta), 150W (Tc) Surface Mount 8-VSONP (5x6)
