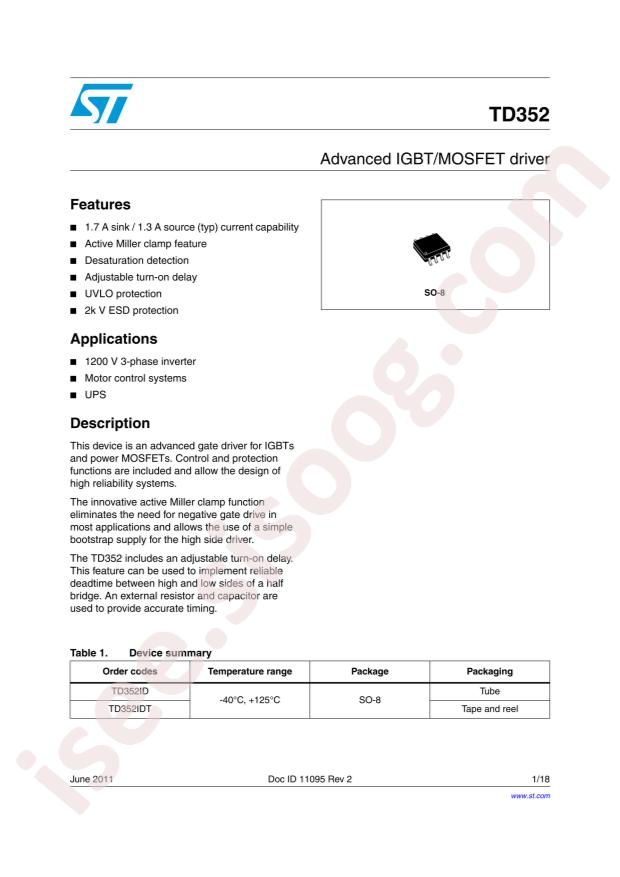

دیتاشیت TD352IDT

TD352 Datasheet

مشخصات دیتاشیت

نام دیتاشیت TD352 Datasheet
حجم فایل 241.099 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

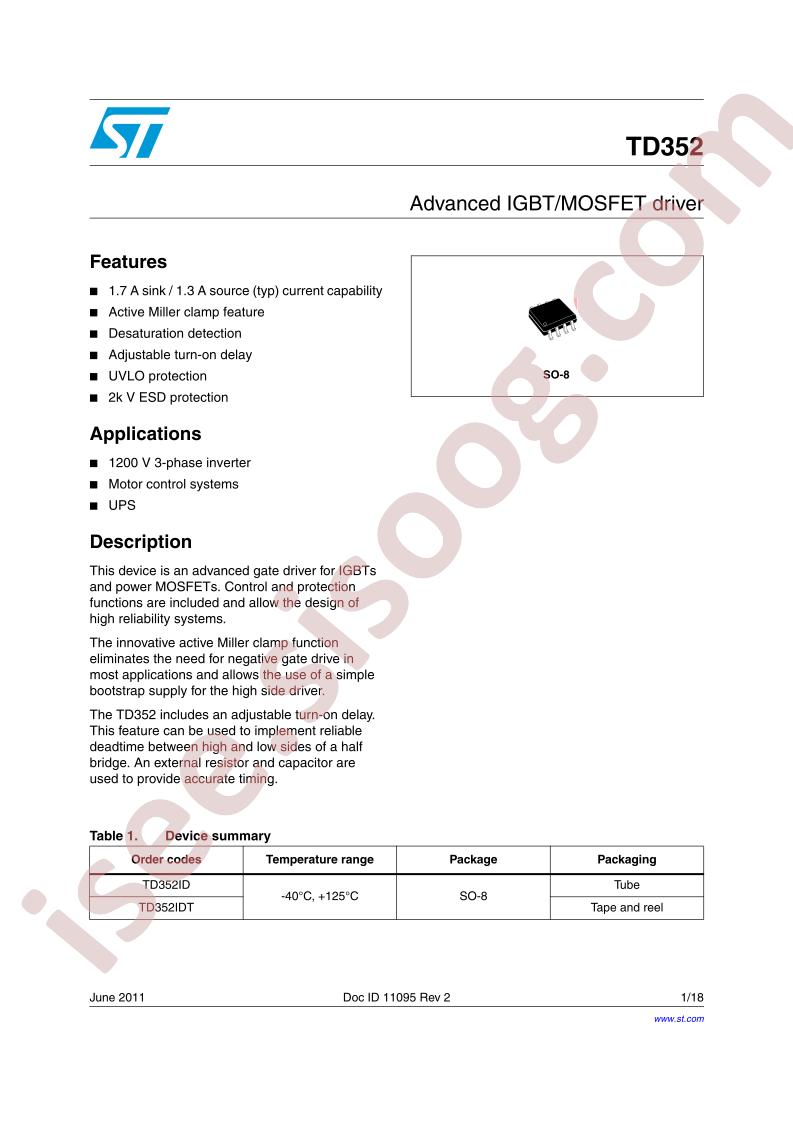

دانلود دیتاشیت TD352 Datasheet

TD352 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: STMicroelectronics TD352IDT
  • Fall Time: 100ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 100ns
  • Supply Voltage: 12V~26V
  • Number of Drivers: 1
  • Driven Configuration: High Side
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Peak Output Current(sink): 1.7A
  • Peak Output Current(source): 1.3A
  • Package: SOP-8
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 12V ~ 26V
  • Logic Voltage - VIL, VIH: 0.8V, 4.2V
  • Current - Peak Output (Source, Sink): 1.3A, 1.7A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 100ns, 100ns (Max)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SO
  • Base Part Number: TD352
  • detail: High-Side Gate Driver IC Non-Inverting 8-SO
