TS12A12511DCNR دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت TS12A12511DCNR	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments TS12A12511DCNR
Turn-on time: 95ns
Turn-off time: 50ns
Supply Voltage: 2.7V~12V
Switch Circuit: SPDT(SPDT)
Number of Channels: 1
On-State Resistance (Max): 5Ω

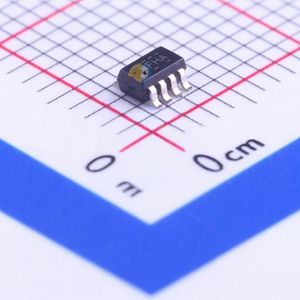

Package: SOT-23-8
Manufacturer: Texas Instruments
Series: -
Number of Circuits: 1
-3db Bandwidth: 93MHz
Voltage - Supply, Dual (V±): ±2.7V ~ 6V
Multiplexer/Demultiplexer Circuit: 2:1
Crosstalk: -70dB @ 1MHz
Supplier Device Package: SOT-23-8
Channel Capacitance (CS(off), CD(off)): 14pF
Switch Time (Ton, Toff) (Max): 95ns, 50ns
Mounting Type: Surface Mount
Current - Leakage (IS(off)) (Max): 1nA
Voltage - Supply, Single (V+): 2.7V ~ 12V
Packaging: Cut Tape (CT)
Base Part Number: TS12A
Package / Case: SOT-23-8
Part Status: Active
Channel-to-Channel Matching (ΔRon): 1Ohm
Charge Injection: 26pC
Operating Temperature: -40°C ~ 85°C (TA)
detail: 1 Circuit IC Switch 2:1 5Ohm (Typ) SOT-23-8
