TPD8S009DSMR دیتاشیت

TPD8S009DSMR

مشخصات دیتاشیت

نام دیتاشیت TPD8S009DSMR
حجم فایل 79.897 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

مشاهده دیتاشیت TPD8S009DSMR

دانلود دیتاشیت

سایر مستندات

Analog Signal Chain Guide 11 pages

TPD8S009 18 pages

ESD/EMI Protection Guide 19 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: Texas Instruments TPD8S009DSMR
  • Breakdown Voltage: 9V
  • Unidirectional Channels: 8
  • Maximum Clamping Voltage: -
  • Reverse Stand-Off Voltage (Vrwm): 5.5V@Max
  • Peak Pulse Current (Ipp)@10/1000μs: -
  • Peak Pulse Power Dissipation (Ppp)@10/1000μs: 25W
  • Package: SON-15
  • Manufacturer: Texas Instruments
  • Voltage - Reverse Standoff (Typ): 5.5V (Max)
  • Capacitance @ Frequency: -
  • Series: -
  • Current - Peak Pulse (10/1000µs): -
  • Base Part Number: TPD8S0
  • Mounting Type: Surface Mount
  • Supplier Device Package: 15-SON
  • Power Line Protection: No
  • Power - Peak Pulse: 25W
  • Voltage - Breakdown (Min): 9V
  • Packaging: Cut Tape (CT)
  • Type: Steering (Rail to Rail)

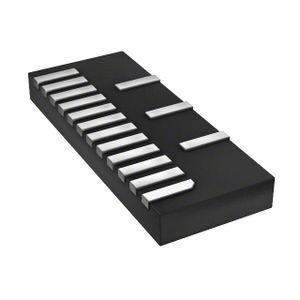

  • Package / Case: 15-SMD, No Lead
  • Applications: HDMI
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Voltage - Clamping (Max) @ Ipp: -
  • Part Status: Active
  • detail: Clamp Ipp Tvs Diode Surface Mount 15-SON
