دیتاشیت LP38690DTX-3.3/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP38690, LP38692 Datasheet |
|---|---|
| حجم فایل | 2073.477 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 33 |

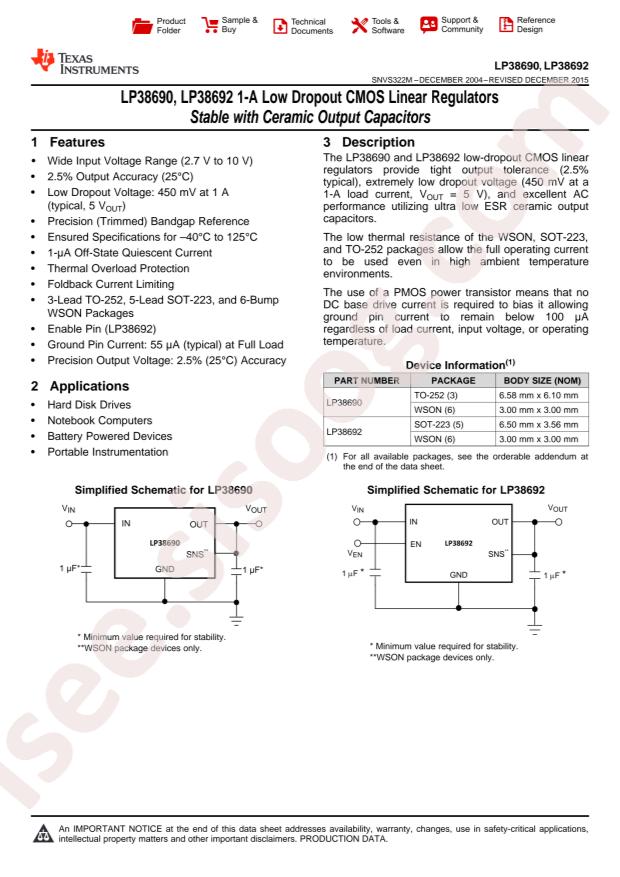

دانلود دیتاشیت LP38690, LP38692 Datasheet |
LP38690, LP38692 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP38690DTX-3.3/NOPB
- Output Type: Fixed
- Output Current: 1A
- Output Voltage: 3.3V
- Dropout Voltage: 1V@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 55uA
- Power Supply Rejection Ratio (PSRR): 55dB@(120Hz)
- Package: TO-252
- Manufacturer: Texas Instruments
- Control Features: -
- Base Part Number: LP38690
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Current - Supply (Max): 100µA
- Part Status: Obsolete
- Current - Output: 1A
- PSRR: 55dB (120Hz)
- Series: -
- Voltage - Output (Min/Fixed): 3.3V
- Mounting Type: Surface Mount
- Number of Regulators: 1
- Current - Quiescent (Iq): 55µA
- Output Configuration: Positive
- Voltage Dropout (Max): 1V @ 1A
- Supplier Device Package: TO-252-3
- Protection Features: Over Temperature
- Voltage - Input (Max): 10V
- Packaging: Tape & Reel (TR)
- Voltage - Output (Max): -
- detail: Linear Voltage Regulator IC 1 Output 1A TO-252-3
