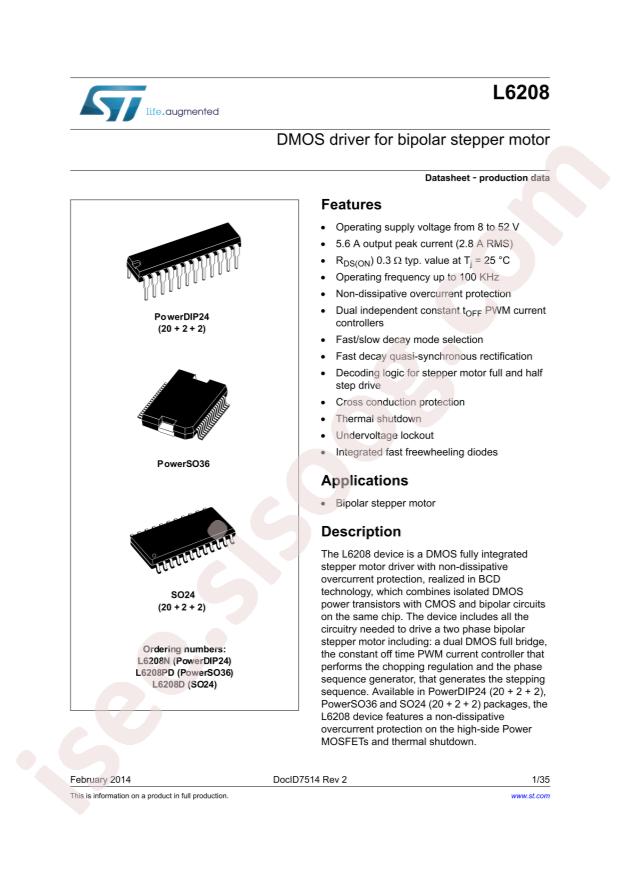

L6208PD013TR دیتاشیت

L6208PD013TR

مشخصات دیتاشیت

نام دیتاشیت L6208PD013TR
حجم فایل 66.262 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

دانلود دیتاشیت L6208PD013TR

دانلود دیتاشیت

سایر مستندات

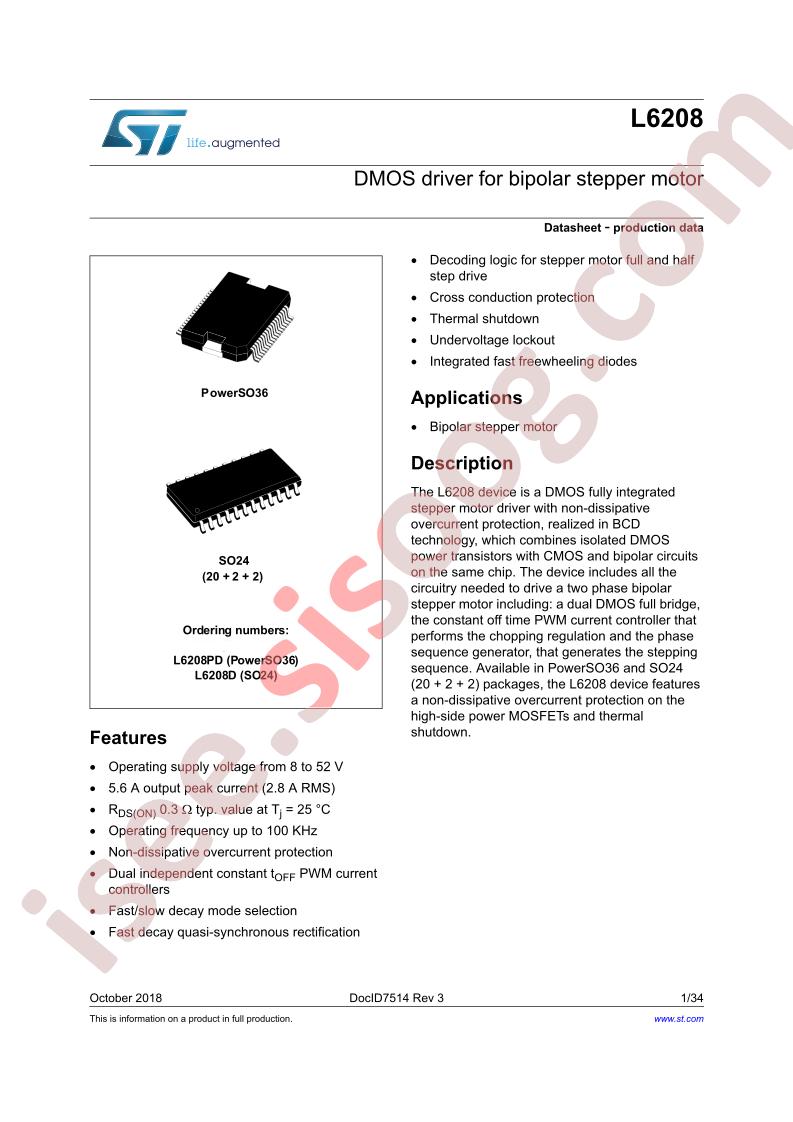

L6208 34 pages

مشخصات فنی

  • RoHS: true
  • Type: -
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: STMicroelectronics L6208PD013TR
  • Interface: Parallel
  • Output Current: 2.8A
  • Supply Voltage: 8V~52V
  • Operating Temperature: -25°C~+125°C@(Tj)
  • Package: PowerSO-36
  • Manufacturer: STMicroelectronics
  • Series: STSPIN L62
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: -
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Technology: DMOS
  • Step Resolution: 1, 1/2
  • Applications: General Purpose
  • Current - Output: 2.8A
  • Voltage - Supply: 8V ~ 52V
  • Voltage - Load: 8V ~ 52V
  • Mounting Type: Surface Mount
  • Package / Case: 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
  • Supplier Device Package: PowerSO-36
  • Base Part Number: L6208
  • detail: Bipolar Motor Driver DMOS Parallel PowerSO-36
