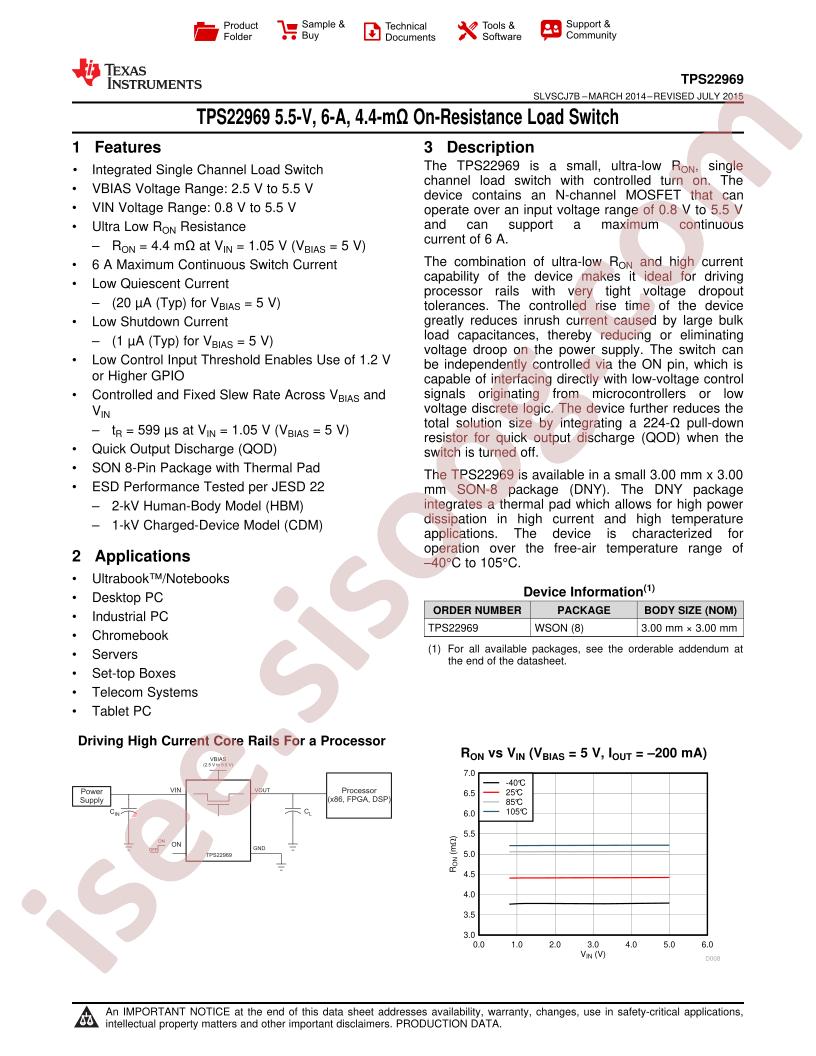

TPS22969DNYR Datasheet
Datasheet specifications
|
Datasheet's name
|
TPS22969DNYR
|
|
File size
|
90.432
KB
|
|
File type
|
pdf
|
|
Number of pages
|
27
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Power Distribution Switches
-
Datasheet:
Texas Instruments TPS22969DNYR
-
Input Voltage:
2.5V~5.5V
-
Output Current:
6A
-
Number of Outputs:
1
-
Resistor On-State:
4.4mΩ
-
Operating Temperature -:
-40°C~+125°C
-
Package:
WSON-8
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Interface:
On/Off
-
Voltage - Supply (Vcc/Vdd):
0.8V ~ 5.5V
-
Features:
Load Discharge, Slew Rate Controlled
-
Fault Protection:
-
-
Supplier Device Package:
8-WSON (3x3)
-
Rds On (Typ):
4.4mOhm
-
Ratio - Input:Output:
1:1
-
Switch Type:
General Purpose
-
Current - Output (Max):
6A
-
Mounting Type:
Surface Mount
-
Input Type:
Non-Inverting
-
Output Configuration:
High Side
-
Voltage - Load:
2.5V ~ 5.5V
-
Packaging:
Cut Tape (CT)
-
Base Part Number:
TPS229
-
Package / Case:
8-PowerWDFN
-
Part Status:
Active
-
Output Type:
N-Channel
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
detail:
Power Switch/Driver 1:1 N-Channel 6A 8-WSON (3x3)
