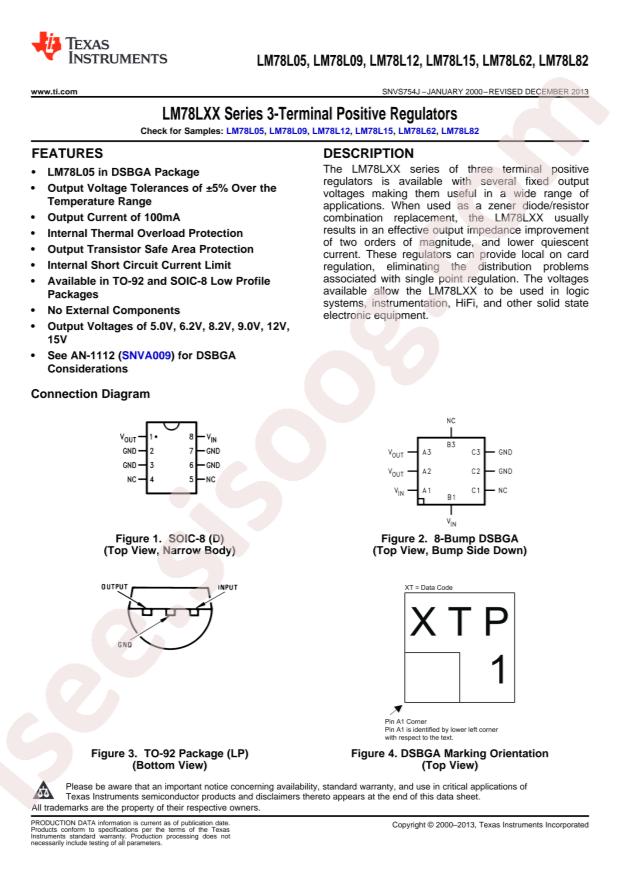

دیتاشیت LM78L05ACZ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM78Lxx Datasheet |
|---|---|
| حجم فایل | 1492.282 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |

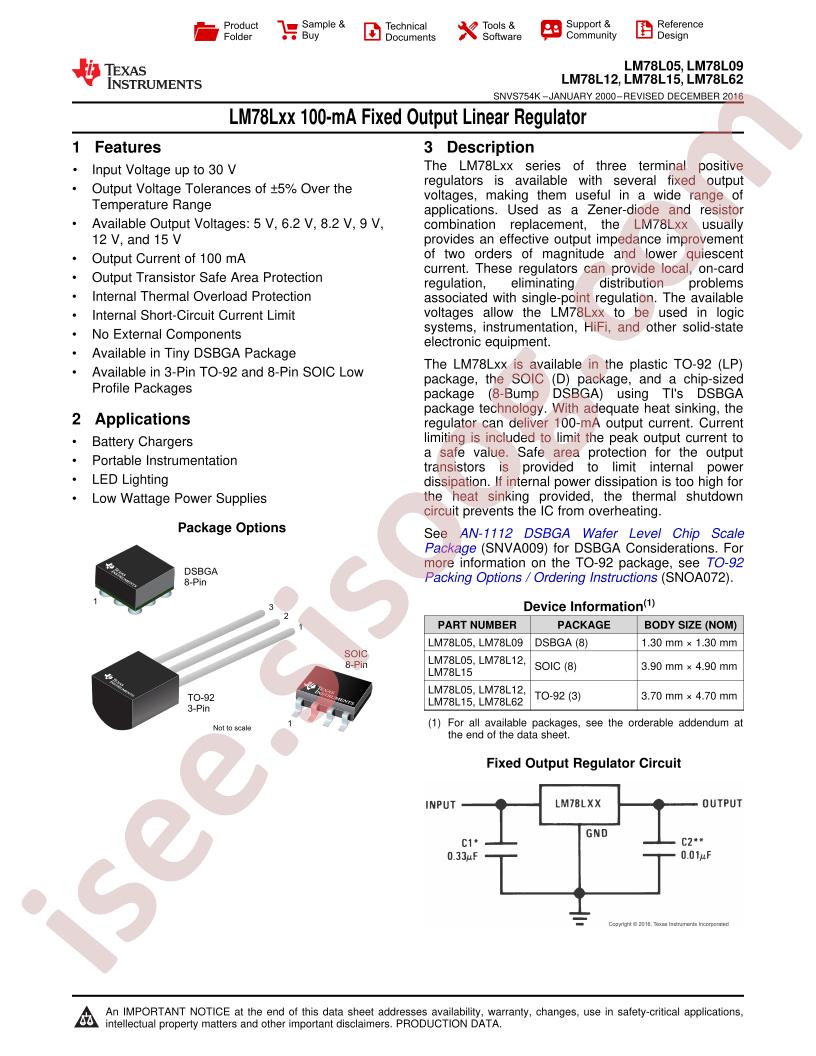

دانلود دیتاشیت LM78Lxx Datasheet |
LM78Lxx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM78L05ACZ/NOPB
- Output Type: Fixed
- Output Current: 100mA
- Output Voltage: 5V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: 0°C~+125°C
- Quiescent Current (Ground Current): 3mA
- Power Supply Rejection Ratio (PSRR): 62dB@(120Hz)
- Package: TO-92
- Manufacturer: Texas Instruments
- Protection Features: Over Temperature, Short Circuit
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Output Configuration: Positive
- Current - Output: 100mA
- Base Part Number: LM78L05
- Control Features: -
- Supplier Device Package: TO-92-3
- Part Status: Obsolete
- Voltage Dropout (Max): -
- PSRR: 62dB (120Hz)
- Series: -
- Voltage - Input (Max): 35V
- Number of Regulators: 1
- Voltage - Output (Min/Fixed): 5V
- Current - Quiescent (Iq): 3mA
- Packaging: Bulk
- Mounting Type: Through Hole
- Voltage - Output (Max): -
- detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
