دیتاشیت TPS2080DR
مشخصات دیتاشیت
| نام دیتاشیت | TPS2080-82/85-87 |
|---|---|
| حجم فایل | 1242.332 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |

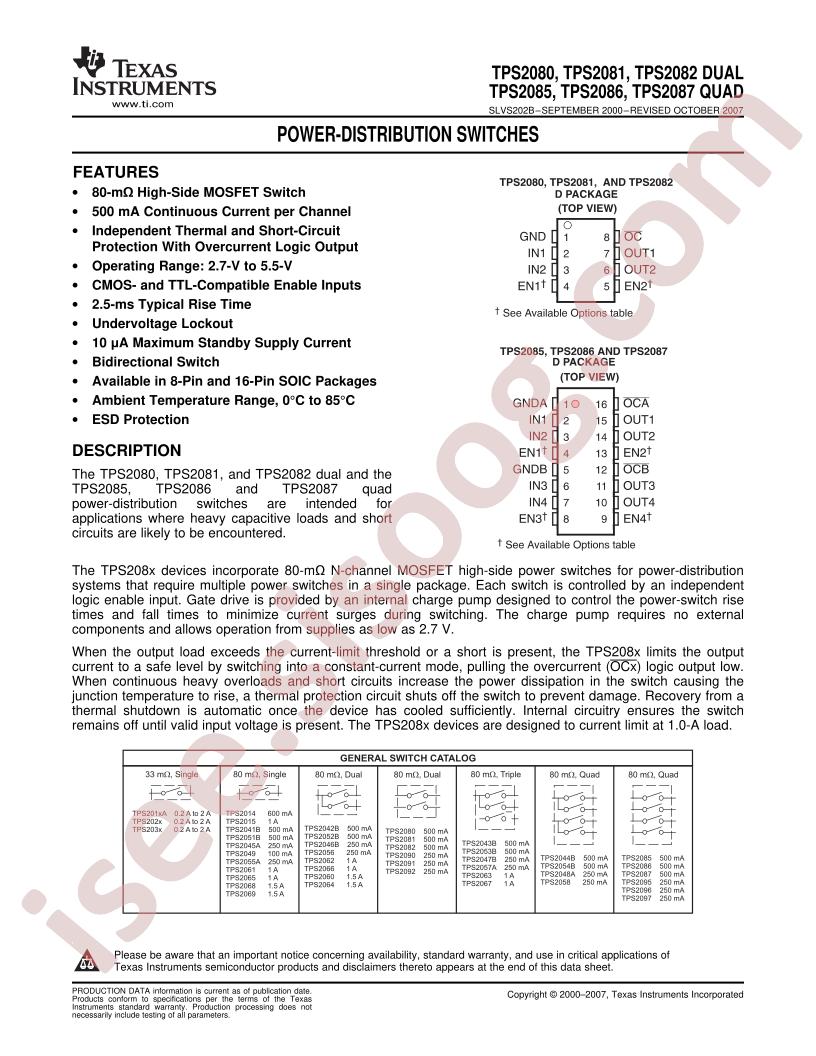

دانلود دیتاشیت TPS2080-82/85-87 |
TPS2080-82/85-87 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: Texas Instruments TPS2080DR
- Input Voltage: 2.7V~5.5V
- Output Current: 500mA
- Number of Outputs: 2
- Resistor On-State: 80mΩ
- Operating Temperature -: 0°C~+125°C

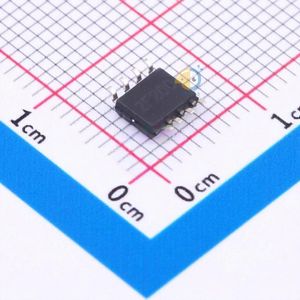

- Package: SOP-8
- Manufacturer: Texas Instruments
- Switch Type: General Purpose
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Current - Output (Max): 500mA
- Operating Temperature: 0°C ~ 125°C (TJ)
- Output Configuration: High Side
- Ratio - Input:Output: 1:1
- Supplier Device Package: 8-SOIC
- Part Status: Active
- Base Part Number: TPS208
- Output Type: N-Channel
- Rds On (Typ): 80mOhm
- Input Type: Non-Inverting
- Voltage - Supply (Vcc/Vdd): Not Required
- Interface: On/Off
- Features: Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature, UVLO
- Voltage - Load: 2.7V ~ 5.5V
- Packaging: Cut Tape (CT)
- Series: -
- Mounting Type: Surface Mount
- detail: Power Switch/Driver 1:1 N-Channel 500mA 8-SOIC
