LM25085MM/NOPB دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LM25085MM/NOPB	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Step-down

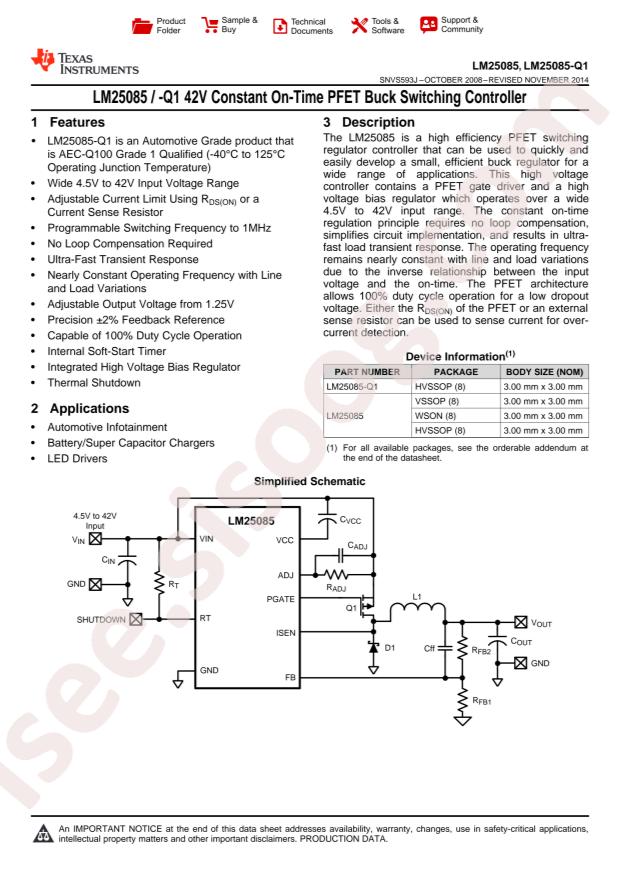

Datasheet: Texas Instruments LM25085MM/NOPB
Input Voltage: 4.5V~42V
Duty Cycle (Max): 100%
Number of Outputs: 1
Switching Frequency: 1MHz
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: VSSOP-8-0.65mm
Manufacturer: Texas Instruments
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Control Features: Current Limit, Frequency Control
Output Configuration: Positive
Packaging: Cut Tape (CT)
Supplier Device Package: 8-VSSOP
Part Status: Active
Base Part Number: LM2508
Output Type: Transistor Driver
Output Phases: 1
Synchronous Rectifier: No
Voltage - Supply (Vcc/Vdd): 4.5V ~ 42V
Frequency - Switching: Up to 1MHz
Series: -
Mounting Type: Surface Mount
Clock Sync: No
Serial Interfaces: -
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-VSSOP
