STW40N90K5 دیتاشیت

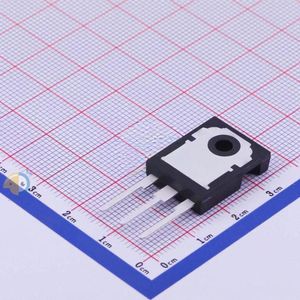

STW40N90K5

مشخصات دیتاشیت

نام دیتاشیت STW40N90K5
حجم فایل 63.631 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت STW40N90K5

دانلود دیتاشیت

سایر مستندات

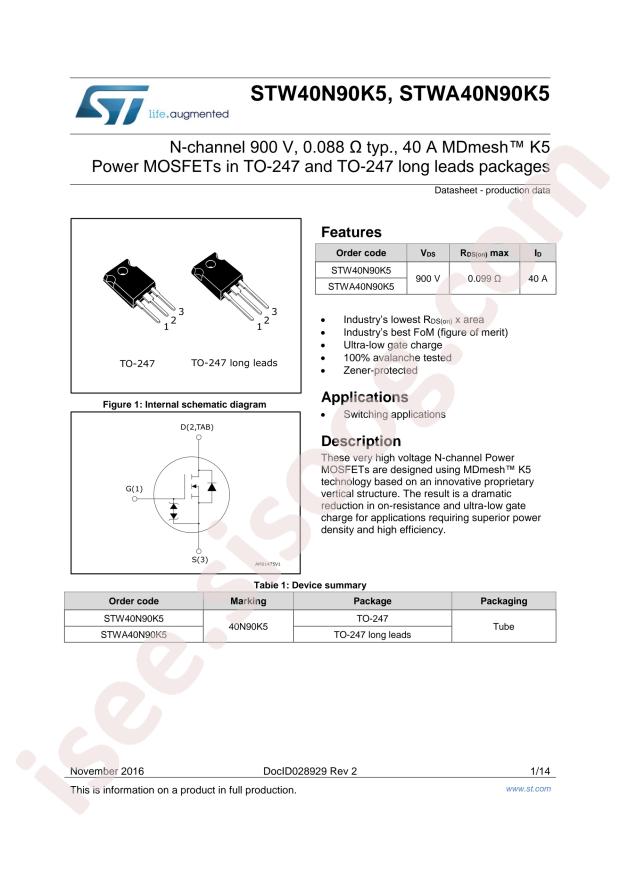

STW(A)40N90K5 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STW40N90K5
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 446W
  • Total Gate Charge (Qg@Vgs): 89nC@10V
  • Drain Source Voltage (Vdss): 900V
  • Input Capacitance (Ciss@Vds): 3260pF@100V
  • Continuous Drain Current (Id): 40A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@100uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 99mΩ@20A,10V
  • Package: TO-247
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ K5
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 900V
  • Current - Continuous Drain (Id) @ 25°C: 40A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 99mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 89nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 3260pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 446W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247
  • Package / Case: TO-247-3
  • Base Part Number: STW40N
  • detail: N-Channel 900V 40A (Tc) 446W (Tc) Through Hole TO-247
