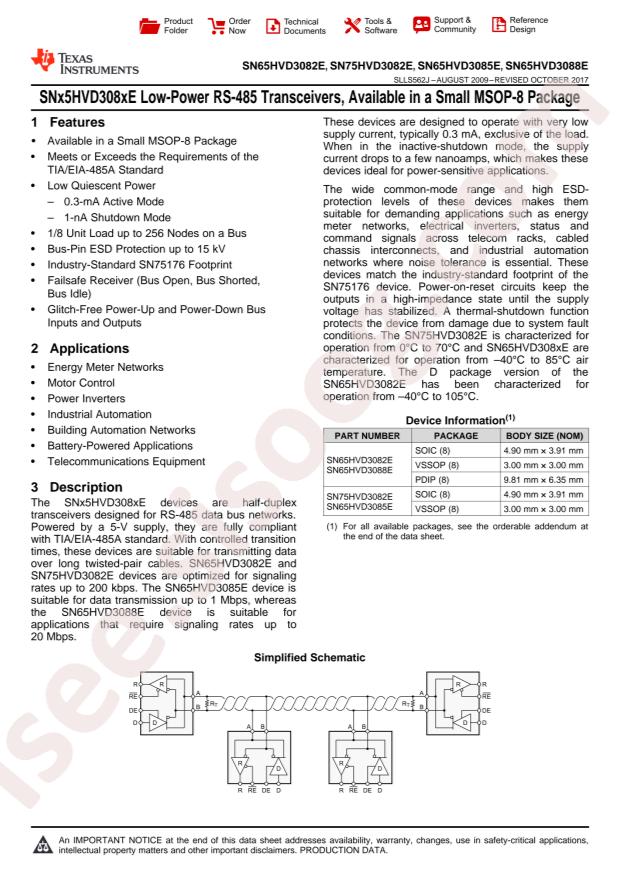

SN75HVD3082EDR Datasheet
Datasheet specifications
| Datasheet's name | SN75HVD3082EDR |
|---|---|
| File size | 118.092 KB |
| File type | |
| Number of pages | 34 |
Download Datasheet SN75HVD3082EDR |
Download Datasheet |
|---|
Other documentations
SN65/75HVD3082E,85E,88E 35 pages
Technical specifications
- RoHS: true
- Types: transceiver
- Category: Communication Interface Chip/UART/485/232/RS-485/RS-422 ICs
- Data Rate: 200Kbps
- Datasheet: Texas Instruments SN75HVD3082EDR
- Supply Voltage: 4.5V~5.5V
- Driver/receiver: 1/1
- Operating Temperature: 0°C~+70°C
- Package: SOP-8
- Manufacturer: Texas Instruments
- Base Part Number: SN75HV
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- Type: Transceiver
- Receiver Hysteresis: 30mV
- Voltage - Supply: 4.5V ~ 5.5V
- Packaging: Cut Tape (CT)
- Number of Drivers/Receivers: 1/1
- Part Status: Active
- Series: -
- Mounting Type: Surface Mount
- Protocol: RS485
- Duplex: Half
- detail: 1/1 Transceiver Half RS485 8-SOIC
