دیتاشیت LM2731XMF/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2731 Datasheet |
|---|---|
| حجم فایل | 1680.198 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |

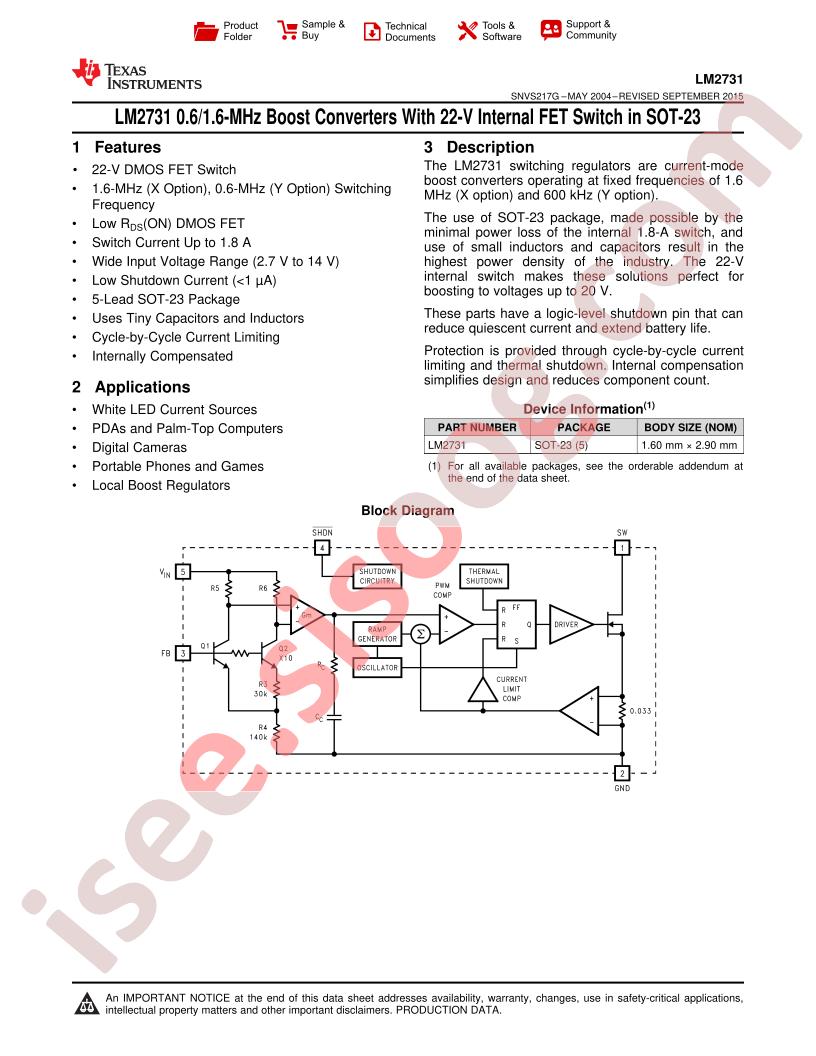

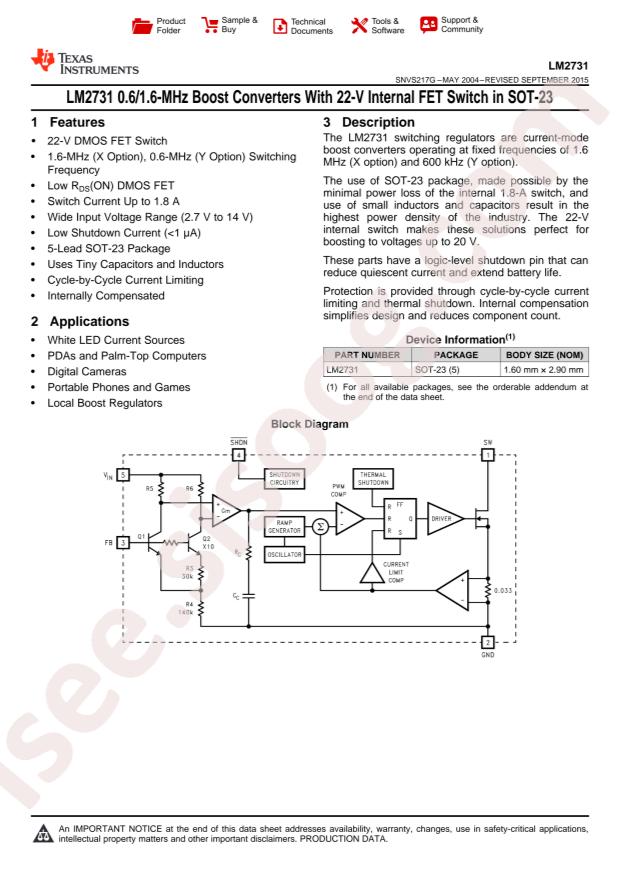

دانلود دیتاشیت LM2731 Datasheet |
LM2731 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType
- Topology: Boost
- Datasheet: Texas Instruments LM2731XMF/NOPB
- Output Type: Adjustable
- Input Voltage: 2.7V~14V
- Output Voltage: 2.7V~22V
- Number of Outputs: 1
- Switching Frequency: 1.6MHz
- Output Current (Max): 1.8A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Series: -
- Voltage - Input (Min): 2.7V
- Base Part Number: LM2731
- Current - Output: 1.8A (Switch)
- Frequency - Switching: 1.6MHz
- Part Status: Not For New Designs
- Voltage - Input (Max): 14V
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-5
- Voltage - Output (Min/Fixed): 2.7V
- Package / Case: SC-74A, SOT-753
- Voltage - Output (Max): 22V (Switch)
- Packaging: Cut Tape (CT)
- Output Configuration: Positive
- Synchronous Rectifier: No
- detail: Boost Switching Regulator IC Positive Adjustable 2.7V 1 Output 1.8A (Switch) SC-74A, SOT-753
