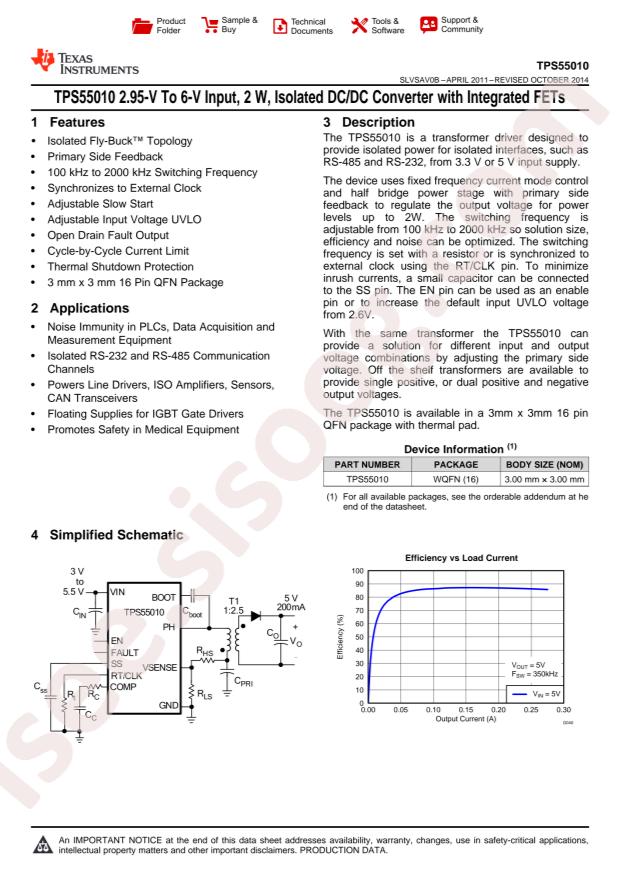

TPS55010RTER دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS55010RTER
|
|
حجم فایل
|
99.813
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
46
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Flyback
-
Datasheet:
Texas Instruments TPS55010RTER
-
Output Type:
Adjustable
-
Input Voltage:
2.98V~6V
-
Output Voltage:
3.3V~20V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
-
-
Operating Temperature:
-40°C~+150°C@(TJ)
-
Synchronous Rectification:
Yes
-
Package:
QFN-16-EP(3x3)
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
100kHz ~ 2MHz
-
Package / Case:
16-WFQFN Exposed Pad
-
Supplier Device Package:
16-WQFN (3x3)
-
Voltage - Output (Min/Fixed):
3.3V
-
Current - Output:
-
-
Output Configuration:
Positive or Negative, Isolation Capable
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Max):
20V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
6V
-
Base Part Number:
TPS550
-
Voltage - Input (Min):
2.98V
-
Synchronous Rectifier:
Yes
-
detail:
Flyback Switching Regulator IC Positive or Negative, Isolation Capable Adjustable 3.3V 1 Output 16-WFQFN Exposed Pad
