- دیتاشیت TPS54336ADDAR

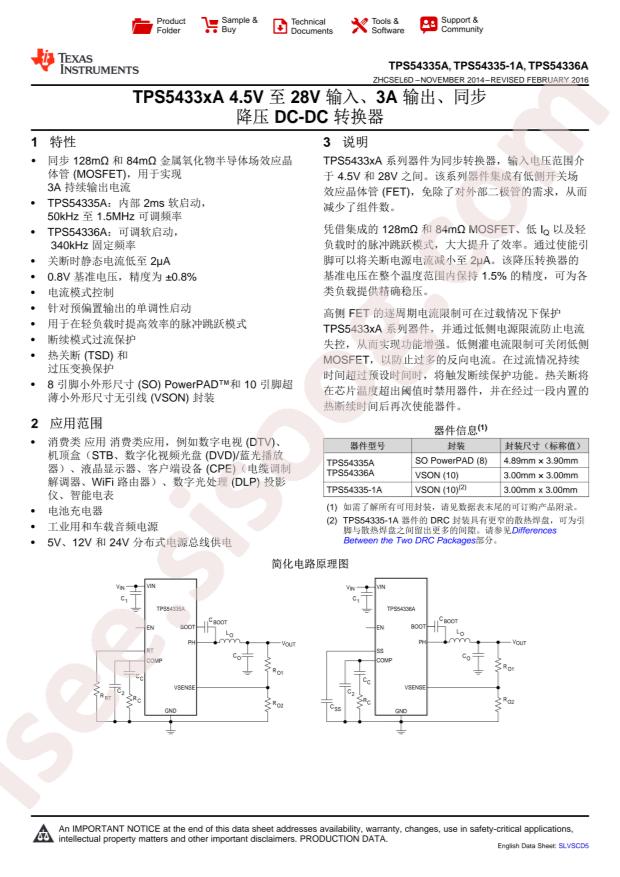

TPS54336ADDAR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS54336ADDAR |
|---|---|
| حجم فایل | 93.412 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 48 |
دانلود دیتاشیت TPS54336ADDAR |
دانلود دیتاشیت |
|---|
سایر مستندات
TPS54335A, TPS54336A Datasheet 57 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments TPS54336ADDAR
- Output Type: Adjustable
- Input Voltage: 4.5V~28V
- Output Voltage: 0.8V~24V
- Number of Outputs: 1
- Switching Frequency: 340kHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: SOP-8-EP
- Manufacturer: Texas Instruments
- Frequency - Switching: 340kHz
- Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO PowerPad
- Voltage - Output (Min/Fixed): 0.8V
- Current - Output: 3A
- Output Configuration: Positive
- Packaging: Cut Tape (CT)
- Part Status: Active
- Voltage - Output (Max): 24V
- Series: -
- Mounting Type: Surface Mount
- Voltage - Input (Max): 28V
- Base Part Number: TPS543
- Voltage - Input (Min): 4.5V
- Synchronous Rectifier: Yes
- detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-PowerSOIC (0.154", 3.90mm Width)
