دیتاشیت LM3478MM/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |
LM3478
|
| حجم فایل |
1693.777
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
41
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/AC-DC Controllers & Regulators
-
Topology:
boost converter;Flyback;SEPIC
-
Datasheet:

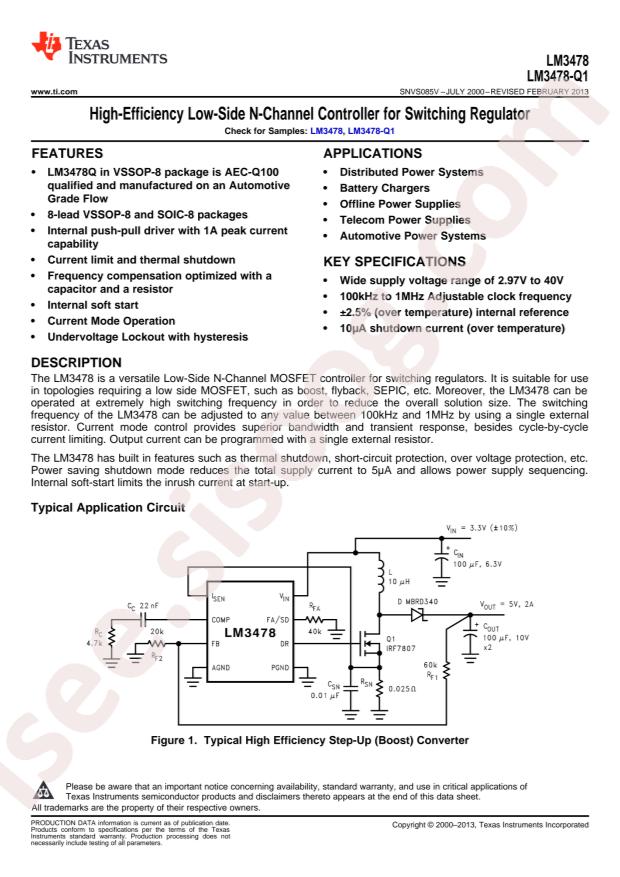

Texas Instruments LM3478MM/NOPB
-
Duty Cycle:
100%
-
Supply Voltage:
2.97V~40V
-
Switching Frequency:
100kHz~1MHz
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Package:
VSSOP-8-0.65mm
-
Manufacturer:
Texas Instruments
-
Duty Cycle (Max):
100%
-
Number of Outputs:
1
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Control Features:
Enable, Frequency Control
-
Output Configuration:
Positive
-
Packaging:
Cut Tape (CT)
-
Supplier Device Package:
8-VSSOP
-
Part Status:
Active
-
Base Part Number:
LM3478
-
Output Type:
Transistor Driver
-
Output Phases:
1
-
Synchronous Rectifier:
No
-
Voltage - Supply (Vcc/Vdd):
2.97V ~ 40V
-
Frequency - Switching:
100kHz ~ 1MHz
-
Function:
Step-Up, Step-Up/Step-Down
-
Series:
-
-
Mounting Type:
Surface Mount
-
Clock Sync:
No
-
Serial Interfaces:
-
-
detail:
Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-VSSOP
