CSD17570Q5B دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

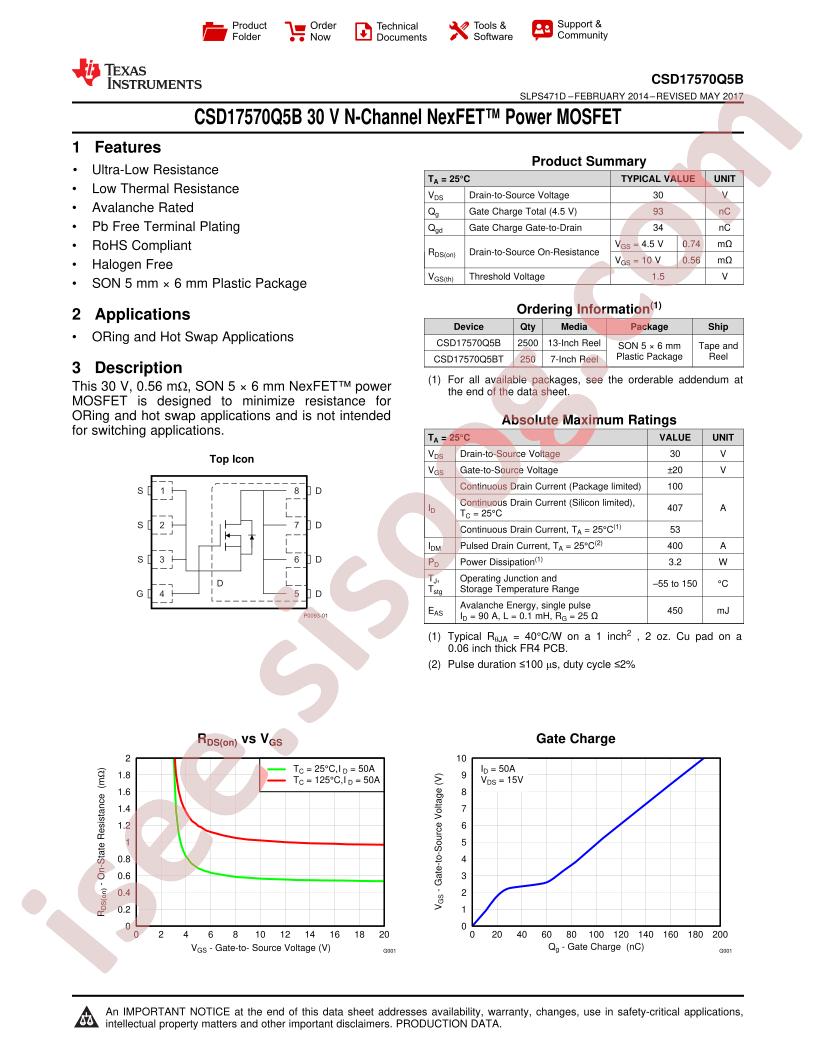

CSD17570Q5B Datasheet
|
|
حجم فایل
|
725.58
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
Vgs(th) (Max) @ Id:
1.9V @ 250µA
-
Input Capacitance (Ciss) (Max) @ Vds:
13600pF @ 15V
-
Package / Case:
8-PowerTDFN
-
Vgs (Max):
±20V
-
FET Feature:
-
-
Drain to Source Voltage (Vdss):
30V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Gate Charge (Qg) (Max) @ Vgs:
121nC @ 4.5V
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Packaging:
Cut Tape (CT)
-
Supplier Device Package:
8-VSON-CLIP (5x6)
-
Part Status:
Active
-
Manufacturer:
Texas Instruments
-
Base Part Number:
CSD17570
-
Series:
NexFET™
-
Mounting Type:
Surface Mount
-
FET Type:
N-Channel
-
Current - Continuous Drain (Id) @ 25°C:
100A (Ta)
-
Technology:
MOSFET (Metal Oxide)
-
Power Dissipation (Max):
3.2W (Ta)
-
Rds On (Max) @ Id, Vgs:
0.69mOhm @ 50A, 10V
-
detail:
N-Channel 30V 100A (Ta) 3.2W (Ta) Surface Mount 8-VSON-CLIP (5x6)
