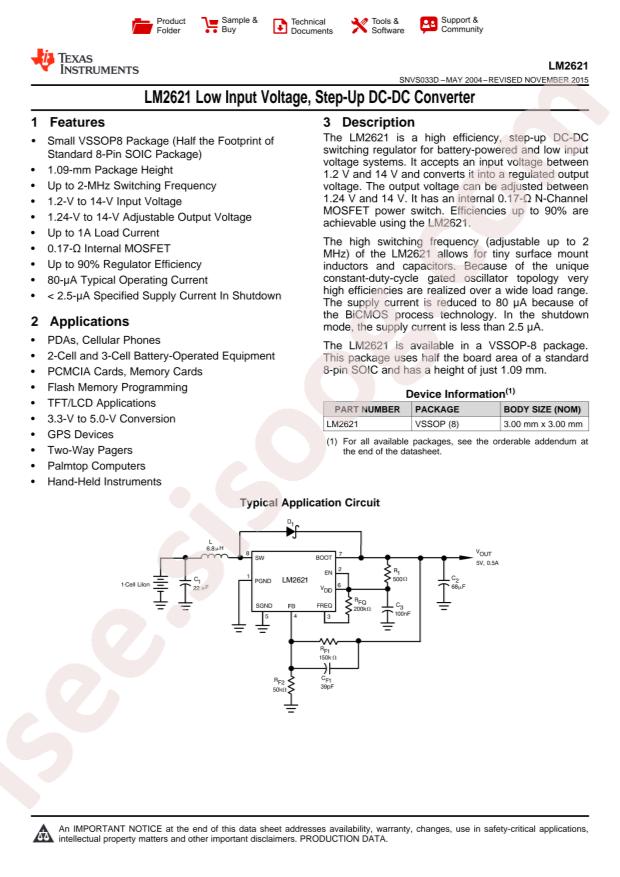

LM2621MM/NOPB دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LM2621MM/NOPB
|
|
حجم فایل
|
90.33
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Buck-boost type
-
Topology:
Boost;SEPIC
-
Datasheet:
Texas Instruments LM2621MM/NOPB
-
Output Type:
Adjustable
-
Input Voltage:
1.2V~14V
-
Output Voltage:
1.24V~14V
-
Number of Outputs:
1
-
Switching Frequency:
2MHz
-
Output Current (Max):
2.85A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Quiescent Current (Iq):
-
-
Synchronous Rectification:
NO
-
Package:
VSSOP-8-0.65mm
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
300kHz ~ 2MHz
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
8-VSSOP
-
Voltage - Output (Min/Fixed):
1.24V
-
Current - Output:
2.85A (Switch)
-
Output Configuration:
Positive
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Max):
14V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
14V
-
Base Part Number:
LM2621
-
Voltage - Input (Min):
1.2V
-
Synchronous Rectifier:
No
-
detail:
Boost, SEPIC Switching Regulator IC Positive Adjustable 1.24V 1 Output 2.85A (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
