TPS61291DRVT دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TPS61291DRVT	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType
Topology: Boost
Datasheet: Texas Instruments TPS61291DRVT
Output Type: Adjustable
Input Voltage: 0.9V~5V
Output Voltage: 2.5V;3V;3.3V
Number of Outputs: 1
Switching Frequency: -
Output Current (Max): 700mA
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes

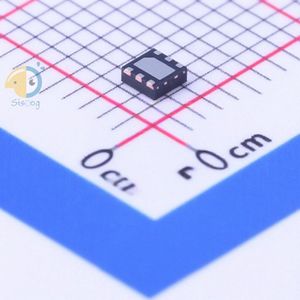

Package: DFN-6(2x2)
Manufacturer: Texas Instruments
Frequency - Switching: -
Package / Case: 6-WDFN Exposed Pad
Supplier Device Package: 6-WSON (2x2)
Voltage - Output (Min/Fixed): 2.5V, 3V, 3.3V
Current - Output: 700mA (Switch)
Output Configuration: Positive
Packaging: Cut Tape (CT)
Part Status: Active
Voltage - Output (Max): -
Series: -
Mounting Type: Surface Mount
Voltage - Input (Max): 5V
Base Part Number: TPS612
Voltage - Input (Min): 0.9V
Synchronous Rectifier: Yes
detail: Boost Switching Regulator IC Positive Programmable 2.5V, 3V, 3.3V 1 Output 700mA (Switch) 6-WDFN Exposed Pad
