دیتاشیت TLV3702IDR
مشخصات دیتاشیت
| نام دیتاشیت |

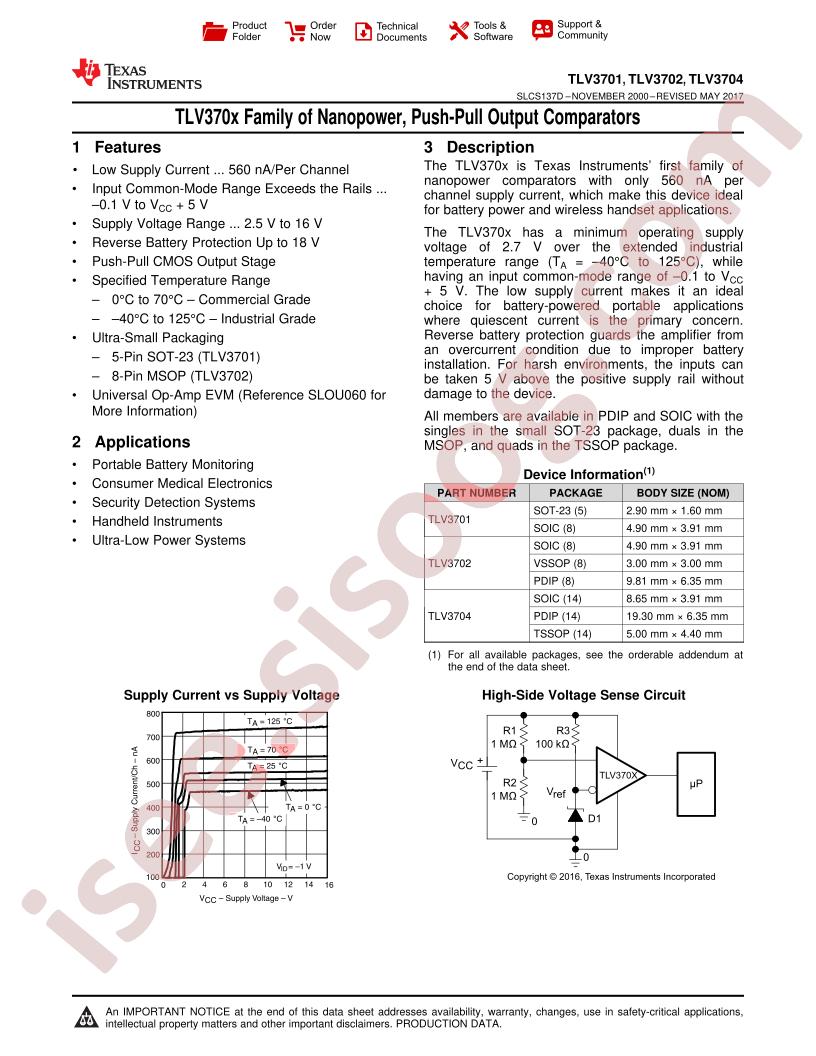

TLV3701/02/04
|
| حجم فایل |
1877.31
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
38
|
مشخصات
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Comparators
-
Datasheet:
Texas Instruments TLV3702IDR
-
Output Type:
CMOS;Push Pull;轨到轨
-
Supply Voltage:
2.7V~16V;1.35V~8V
-
Number of Elements:
-
-
Operating Temperature:
-40°C~+125°C
-
Input Bias Current (Ib):
250pA
-
Input Offset Voltage (Vos):
5mV
-
Input Hysteresis Voltage (Vhys):
-
-
Common Mode Rejection Ratio (CMRR):
88dB
-
Package:
SOP-8
-
Manufacturer:
Texas Instruments
-
CMRR, PSRR (Typ):
88dB CMRR, 105dB PSRR
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Hysteresis:
-
-
Type:
General Purpose
-
Voltage - Supply, Single/Dual (±):
2.7V ~ 16V, ±1.35V ~ 8V
-
Packaging:
Cut Tape (CT)
-
Supplier Device Package:
8-SOIC
-
Current - Input Bias (Max):
250pA @ 15V
-
Part Status:
Active
-
Base Part Number:
TLV370
-
Series:
-
-
Voltage - Input Offset (Max):
5mV @ 15V
-
Mounting Type:
Surface Mount
-
Current - Output (Typ):
10mA
-
Current - Quiescent (Max):
1µA
-
Propagation Delay (Max):
-
-
detail:
Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail 8-SOIC
