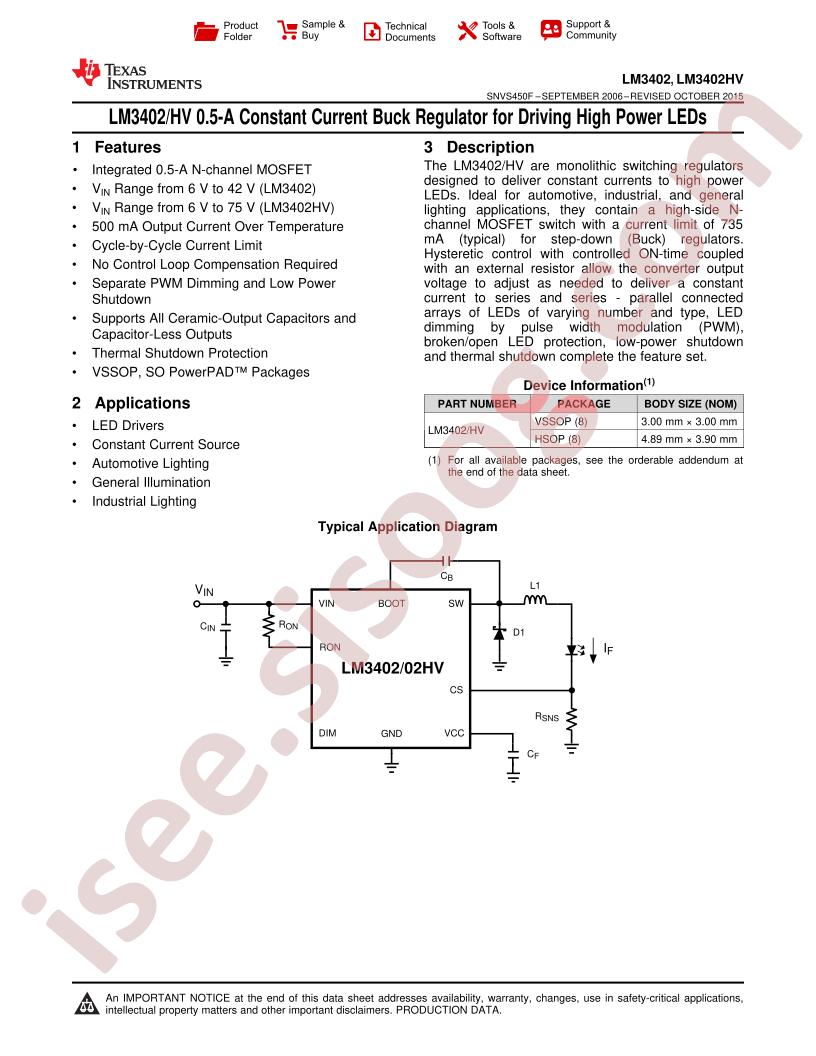

دیتاشیت LM3402/02HV
مشخصات دیتاشیت
| نام دیتاشیت |
LM3402/02HV
|
| حجم فایل |
1814.826
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
44
|
مشخصات فنی
-
RoHS:
true
-
Type:
DC-DCVoltage Stabilizer
-
Dimming:
PWM
-
Category:
Nixie Tube Driver/LED Driver/LED Drivers
-
Channels:
1
-
Topology:
Step-down
-
Datasheet:
Texas Instruments LM3402HVMRX/NOPB
-
Input Voltage:
6V~75V
-
Output Current:
500mA
-
Output Voltage:
73V
-
Switch Frequency:
1MHz
-
Operating temperature:
-40°C~+125°C
-
Package:
SO-8-EP
-
Manufacturer:
Texas Instruments
-
Voltage - Supply (Max):
75V
-
Number of Outputs:
1
-
Package / Case:
8-PowerSOIC (0.154", 3.90mm Width)
-
Applications:
Lighting
-
Voltage - Output:
73V
-
Frequency:
1MHz
-
Packaging:
Cut Tape (CT)
-
Voltage - Supply (Min):
6V
-
Part Status:
Active
-
Base Part Number:
LM3402
-
Series:
-
-
Mounting Type:
Surface Mount
-
Internal Switch(s):
Yes
-
Current - Output / Channel:
500mA
-
Supplier Device Package:
8-SO PowerPad
-
detail:
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) PWM Dimming 500mA 8-SO PowerPad
