TPS735xx Datasheet دیتاشیت

مشخصات دیتاشیت

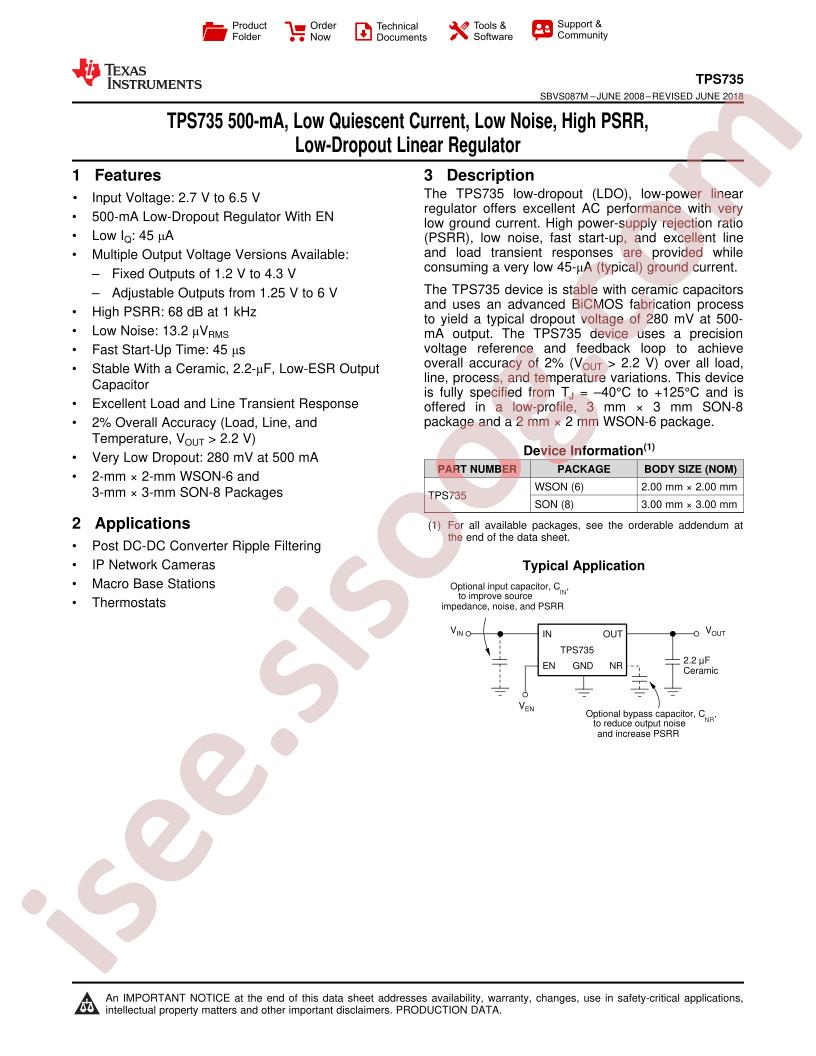

دانلود دیتاشیت TPS735xx Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS73533DRBT
Output Type: Fixed
Output Current: 500mA
Output Voltage: 3.3V
Dropout Voltage: 500mV@(500mA)
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 6.5V
Power Supply Rejection Ratio (PSRR): 66dB@(100Hz),22dB@(100kHz)
Package: DFN-8(3x3)
Manufacturer: Texas Instruments
Voltage - Output (Min/Fixed): 3.3V
Voltage Dropout (Max): 0.5V @ 500mA
Package / Case: 8-VDFN Exposed Pad
Control Features: Enable
Supplier Device Package: 8-SON (3x3)
Current - Output: 500mA
Operating Temperature: -40°C ~ 125°C
Voltage - Output (Max): -
Packaging: Cut Tape (CT)
Mounting Type: Surface Mount
Part Status: Active
Output Configuration: Positive
Series: -
Base Part Number: TPS735
Voltage - Input (Max): 6.5V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
PSRR: 66dB ~ 22dB (100Hz ~ 100kHz)
Number of Regulators: 1
Current - Quiescent (Iq): 65µA
detail: Linear Voltage Regulator IC 1 Output 500mA 8-SON (3x3)
