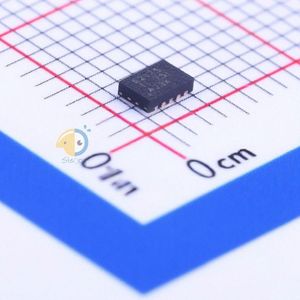

TPS62175DQCT دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TPS62175DQCT	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Buck-boost type
Topology: Step-down;Step-down-Boost
Datasheet: Texas Instruments TPS62175DQCT
Input Voltage: 4.75V~28V
Output Voltage: 1V~6V
Number of Outputs: 1
Switching Frequency: 1MHz
Output Current (Max): 500mA
Synchronous Rectification: Yes
Package: DFN-10(2x3)
Manufacturer: Texas Instruments
Frequency - Switching: 1MHz
Package / Case: 10-WFDFN Exposed Pad
Supplier Device Package: 10-WSON (3x2)
Voltage - Output (Min/Fixed): 1V
Current - Output: 500mA
Operating Temperature: -40°C ~ 85°C (TA)
Output Configuration: Positive or Negative
Packaging: Cut Tape (CT)
Part Status: Active
Voltage - Output (Max): 6V
Series: DCS-Control™
Mounting Type: Surface Mount
Voltage - Input (Max): 28V
Output Type: Adjustable
Base Part Number: TPS621
Voltage - Input (Min): 4.75V
Synchronous Rectifier: Yes
detail: Buck, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1V 1 Output 500mA 10-WFDFN Exposed Pad
