دیتاشیت LM2832XMY/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |
LM2832
|
| حجم فایل |
1307.157
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
36
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:

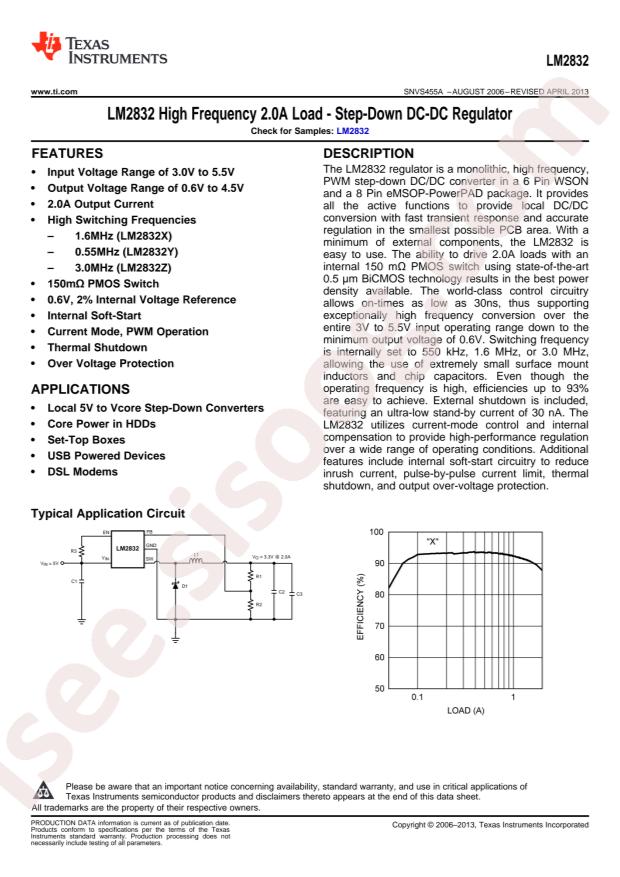

Texas Instruments LM2832XMY/NOPB
-
Output Type:
Adjustable
-
Input Voltage:
3V~5.5V
-
Output Voltage:
0.6V~4.5V
-
Number of Outputs:
1
-
Switching Frequency:
1.6MHz
-
Output Current (Max):
2A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
MSOP-8-EP
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Voltage - Input (Min):
3V
-
Base Part Number:
LM2832
-
Current - Output:
2A
-
Frequency - Switching:
1.6MHz
-
Part Status:
Not For New Designs
-
Voltage - Input (Max):
5.5V
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-MSOP-PowerPad
-
Voltage - Output (Min/Fixed):
0.6V
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Voltage - Output (Max):
4.5V
-
Packaging:
Cut Tape (CT)
-
Output Configuration:
Positive
-
Synchronous Rectifier:
No
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
