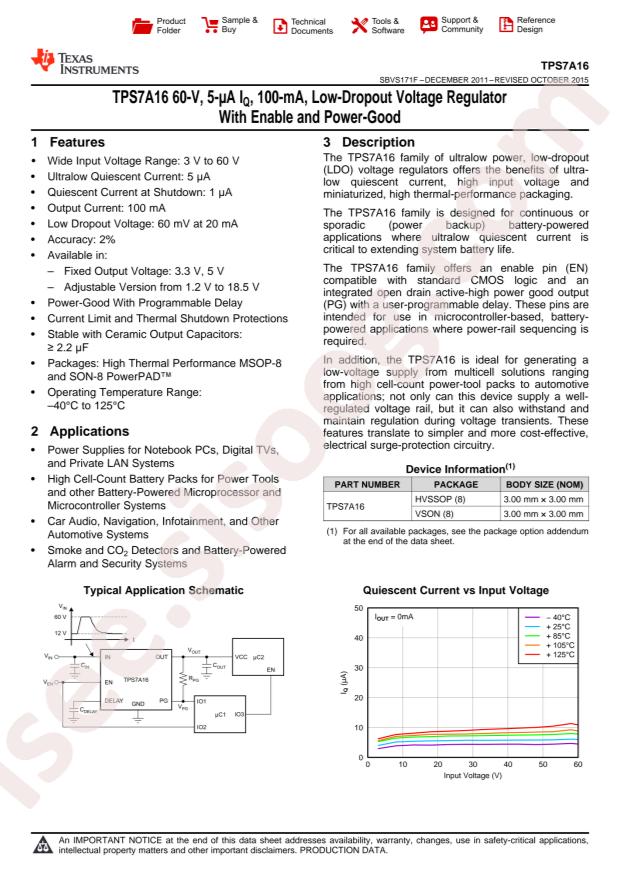

TPS7A1650DGNR Datasheet
Datasheet specifications
|
Datasheet's name
|
TPS7A1650DGNR
|
|
File size
|
110.631
KB
|
|
File type
|
pdf
|
|
Number of pages
|
35
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7A1650DGNR
-
Output Current:
100mA
-
Output Voltage:
5V
-
Dropout Voltage:
0.5V@(100mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
60V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
15uA
-
Power Supply Rejection Ratio (PSRR):
50dB@(100Hz)
-
Package:
MSOP-8-EP
-
Manufacturer:
Texas Instruments
-
Voltage - Output (Min/Fixed):
5V
-
Voltage Dropout (Max):
0.5V @ 100mA
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Control Features:
Enable, Power Good
-
Supplier Device Package:
8-MSOP-PowerPad
-
Current - Output:
100mA
-
Voltage - Output (Max):
-
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Output Configuration:
Positive
-
Series:
-
-
Base Part Number:
TPS7A1
-
Voltage - Input (Max):
60V
-
Output Type:
Fixed
-
Protection Features:
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
-
PSRR:
50dB (100Hz)
-
Number of Regulators:
1
-
Current - Quiescent (Iq):
15µA
-
detail:
Linear Voltage Regulator IC 1 Output 100mA 8-MSOP-PowerPad
