LM2941SX/NOPB 数据手册
其他文档

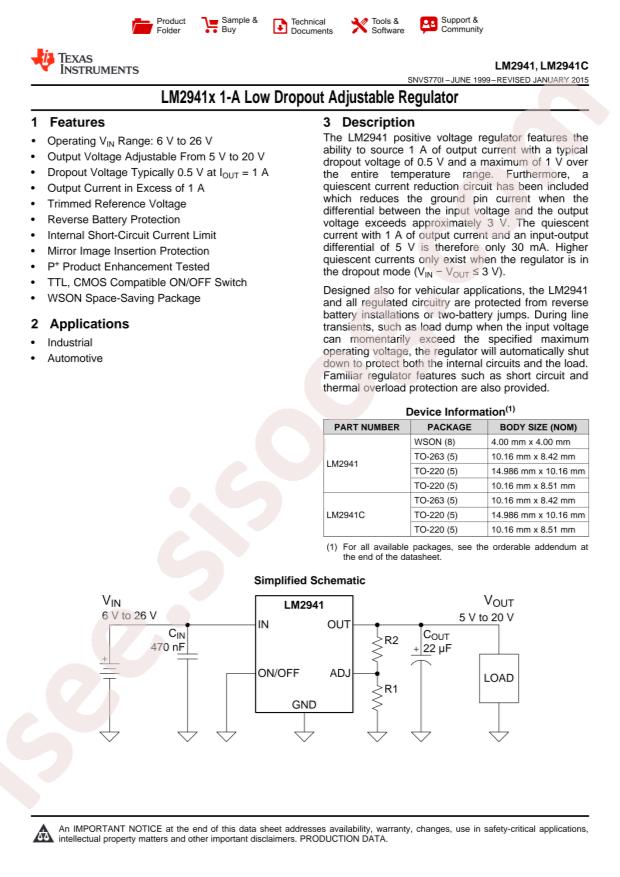

LM2941(C) 32 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM2941SX/NOPB
- Output Type: Adjustable
- Output Current: 1A
- Output Voltage: 5V~20V
- Dropout Voltage: 1V@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 26V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 10mA
- Power Supply Rejection Ratio (PSRR): -
- Package: TO-263-5
- Manufacturer: Texas Instruments
- Series: -
- Voltage - Output (Max): 20V
- Output Configuration: Positive
- Voltage Dropout (Max): 1V @ 1A
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 5V
- Protection Features: Over Temperature, Reverse Polarity, Short Circuit
- PSRR: -
- Supplier Device Package: DDPAK/TO-263-5
- Current - Quiescent (Iq): 10mA
- Base Part Number: LM2941
- Mounting Type: Surface Mount
- Number of Regulators: 1
- Voltage - Input (Max): 26V
- Current - Output: 1A
- Part Status: Not For New Designs
- Current - Supply (Max): 15mA
- Control Features: Enable
- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- detail: Linear Voltage Regulator IC 1 Output 1A DDPAK/TO-263-5
