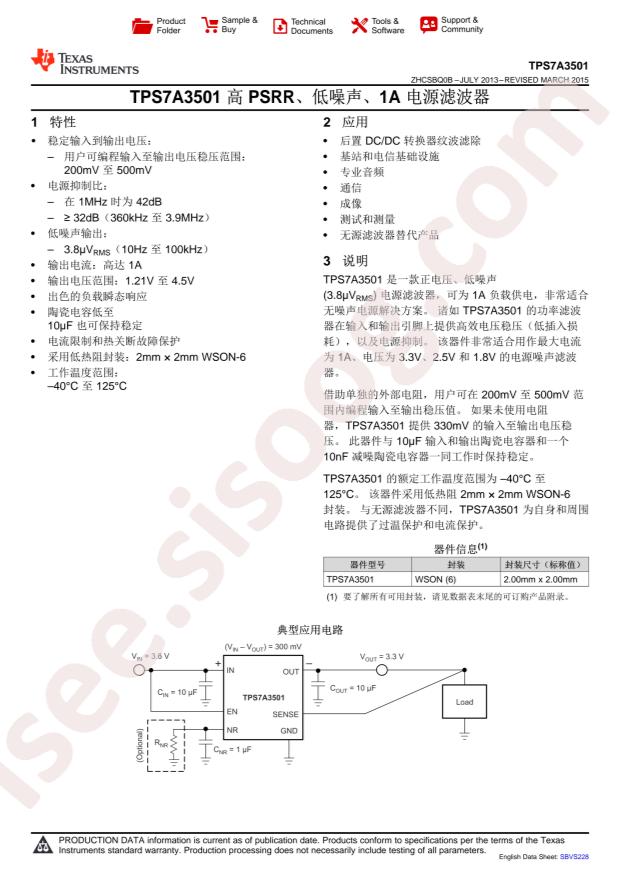

TPS7A3501DRVT Datasheet
Datasheet specifications
|
Datasheet's name
|
TPS7A3501DRVT
|
|
File size
|
76.187
KB
|
|
File type
|
pdf
|
|
Number of pages
|
30
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS7A3501DRVT
-
Output Type:
Adjustable
-
Output Current:
1A
-
Output Voltage:
1.21V~4.5V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
5mA
-
Package:
DFN-6(2x2)
-
Manufacturer:
Texas Instruments
-
Voltage - Output (Min/Fixed):
1.21V
-
Voltage Dropout (Max):
-
-
Package / Case:
6-WDFN Exposed Pad
-
Control Features:
Enable
-
Supplier Device Package:
6-WSON (2x2)
-
Current - Output:
1A
-
Voltage - Output (Max):
4.5V
-
Packaging:
Cut Tape (CT)
-
Mounting Type:
Surface Mount
-
Part Status:
Active
-
Output Configuration:
Positive
-
Series:
-
-
Base Part Number:
TPS7A3
-
Voltage - Input (Max):
5V
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
PSRR:
55dB ~ 42dB (10kHz ~ 1MHz)
-
Number of Regulators:
1
-
Current - Quiescent (Iq):
5mA
-
detail:
Linear Voltage Regulator IC 1 Output 1A 6-WSON (2x2)
